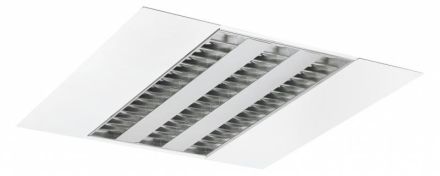

Feilo Sylvania 0052462 Rana 2 625 3-flm 40W 4500lm 840 LED recessed light

Feilo Sylvania 0052462 Rana 2 625 3-flm 40W 4500lm 840 LED recessed light

In stock

SKU: 877901

Price on request

€396.53

€0

Into a basketIn the basketGo

Overview

RANA LED R 625 HO 4K LOUV+PRI W GEN2

Property	Value
System power:	40 W
Luminous flux:	4500 lm
Number of LM:	3
Length:	620 mm
Width:	620 mm
Height/depth:	60 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	white
Color temperature:	4000 K
Impact resistance:	IK07
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With Light source:	yes
Light source:	LED replaceable
Connection type:	other
With control gear:	yes
Cover material:	structured plastic
Light distributor:	diffuser lens/optics/panel
Installation height/depth:	120 mm
Without dimming function:	yes
Light emission:	direct
With light sensor:	no
Control gear:	LED control gear current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip lighting configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life:	50000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Luminaire luminous efficacy:	113 lm/W
Power factor:	0.95
Type of wiring:	with through wiring
Conductor cross-section:	2.5 mm²
Nominal current:	166.7 to 191.4 mA
Replaceable operating device:	yes
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM3
Max. number of luminaires circuit breaker B16:	24
Max. Number of lights circuit breaker C16:	40
Integrated emergency power supply:	no
Constant luminous flux control:	no
Photobiological safety according to EN 62471:	RG0
Glare limitation (UGR):	19
Adjustable color temperature:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Number of LM3

HABRana 2 625 3-flm 40W 4500lm 840

Manufacturer

HAN0052462

GTIN5410288524627

Covering the luminaire with thermal insulation material possibleYes

Connection typeOther

Type of wiringWith through wiring

Execution of the gridFrosted

Beam angleFree-radiating/diffuse

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Glare limitation (UGR)19

Width620 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth120 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth60 mm

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.95

Conductor cross-section2.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy113lm/W

LampsLED replaceable

Light emissionDirect

Light colorWhite

Luminous flux4500lm

Light distributorDiffuser lens/optics/panel

Length620 mm

Max. number of luminaires Circuit breaker B1624

Max. number of luminaires Circuit breaker C1640

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Rated current166.7 to 191.4 mA

Emergency power supply integratedNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Impact resistanceIK07

IP protection)IP20

Protection classI

Voltage typeAC

System performance40W

Cover materialPlastic structured
