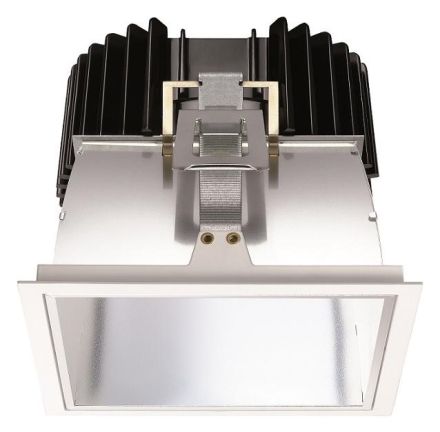

Feilo Sylvania 2059391 Ascent 150 Q 14W 1600lm 830 Dali single LED recessed ceiling spotlight

Feilo Sylvania 2059391 Ascent 150 Q 14W 1600lm 830 Dali single LED recessed ceiling spotlight

In stock

SKU: 876991

Price on request

€739.45

€0

Into a basketIn the basketGo

Overview

ASCENT150 II SQ 1900 3K DALI EM

Property	Value
System power:	16 W
Rated luminous flux:	1900 lm
Housing color:	Aluminum
Protection class (IP):	IP44
Light source:	LED replaceable
Protection class:	II
With light source:	yes
With control gear:	no
Suitable for recessed mounting:	yes
Length:	188 mm
Width:	188 mm
Height/Depth:	123 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Operating device:	EVG
Beam angle:	wide beam 41-80°
Impact resistance:	IK03
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	other
Suitable for number of light sources:	1
Luminous flux:	1900 lm
Cover material:	transparent plastic
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Suitable for Busbar mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	yes
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	reflector
Light emission:	direct
Total harmonic distortion (THD):	8
Rated service life L70/B50 at 25 °C:	100000 h
Rated ambient temperature according to IEC 62722-2-1:	25 °C
Type of wiring:	with through-wiring
Power factor:	1
Conductor cross-section:	1 mm²
Connectable Conductor cross-section:	1 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	119 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM3
Replaceable operating device:	yes
Dimming DALI-2:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable beam angle:	no
Max. number of luminaires circuit breaker B16:	32
Max. Number of lights circuit breaker C16:	53
Emergency power supply integrated:	no
IFTTT support available:	no
Glare limitation (UGR):	22
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Total harmonic distortion (THD)8

Connectable conductor cross-section1 mm²

Rated luminous flux1900 lm

HABAscent 150 Q 14W 1600lm 830 Dali Single

Manufacturer

HAN2059391

GTIN5025768593910

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringWith through wiring

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C100000 hours

Rated ambient temperature according to IEC 62722-2-125°C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)22

Width188 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchYes

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorAluminum

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth123 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor1

Conductor cross-section1 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy119lm/W

LampsLED replaceable

Light emissionDirect

Luminous flux1900lm

Light distributorReflector

Length188 mm

Max. number of luminaires Circuit breaker B1632

Max. number of luminaires Circuit breaker C1653

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG0

ReflectorOther

Impact resistanceIK03

IP protection)IP44

Protection classII

Voltage typeAC

System performance16W

AdjustabilityNot adjustable

Cover materialPlastic transparent
