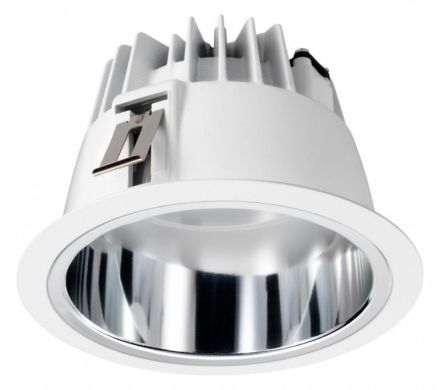

Feilo Sylvania 2060535 Ascent 100 Arch. 120 18W 2034lm 840 LED recessed ceiling spotlight

Feilo Sylvania 2060535 Ascent 100 Arch. 120 18W 2034lm 840 LED recessed ceiling spotlight

In stock

SKU: 876932

Price on request

€220.24

€0

Into a basketIn the basketGo

Overview

ASCENT 100 II ARCH 2000 4K STD 120

Property	Value
System power:	16 W
Rated luminous flux:	2029 lm
Housing color:	white
Protection class (IP):	IP40
Outer diameter:	150 mm
Light source:	LED replaceable
Protection class:	II
With light source:	yes
With operating device:	yes
Suitable for Recessed installation:	yes
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Operating device:	EVG
Beam angle:	extremely wide beam>80°
Impact resistance:	IK02
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Suitable for number of light sources:	1
Luminous flux:	2029 lm
Cover material:	Opal plastic
Voltage type:	AC
Suitable for track mounting:	no
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for Traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	diffuser lens/optics/panel
Light emission:	direct
Total harmonic distortion (THD):	150
Rated service life L70/B50 at 25 °C:	100000 h
Rated ambient temperature according to IEC 62722-2-1:	0 to 25 °C
Type of Wiring:	Termination
Power factor:	0.96
Connection type:	Plug terminal
Luminous efficacy:	127 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Replaceable operating device:	yes
Dimming DALI-2:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable beam angle:	no
Max. number of luminaires with circuit breaker B16:	50
Max. Number of lights circuit breaker C16:	85
Integrated emergency power supply:	no
Glare limitation (UGR):	25
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Total harmonic distortion (THD)150

Rated luminous flux2029 lm

HABAscent 100 Arch. 120 18W 2034lm 840

Manufacturer

HAN2060535

GTIN5025768605354

Connection typePlug-in terminal

Type of wiringDiploma

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter150 mm

Rated lifetime L70/B50 at 25 °C100000 hours

Rated ambient temperature according to IEC 62722-2-10 to 25 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)25

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.96

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy127lm/W

LampsLED replaceable

Light emissionDirect

Luminous flux2029 lm

Light distributorDiffuser lens/optics/panel

Max. number of luminaires Circuit breaker B1650

Max. number of luminaires Circuit breaker C1685

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Impact resistanceIK02

IP protection)IP40

Protection classII

Voltage typeAC

System performance16W

Cover materialPlastic opal
