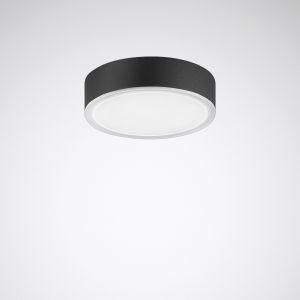

Trilux 6457451 Onplana D07 CDP19 1000 840 ETDD 26 LED ceiling light, anthracite

Round LED surface-mounted downlight, installation height 60 mm. For wall and ceiling mounting. With primary reflector and highly efficient CDP microprismatics. With predominantly direct light distribution. Increased lighting comfort through decorative ceiling illumination. Glare assessment according to UGR standard table method with classification < 19 with reflection values 80/60/30. Harmonious lighting effect through evenly illuminated light output. Rated luminous flux 1100 lm, rated power 9.00 W, luminaire luminous efficacy 122 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Luminaire body anthracite structural powder-coated. (DB 703). External dimensions ceiling ring Ø 234 mm, luminaire height 60 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP40, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 1.7 kg. With connection terminal up to 2.5 mm, strain relief and mains forwarding. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
