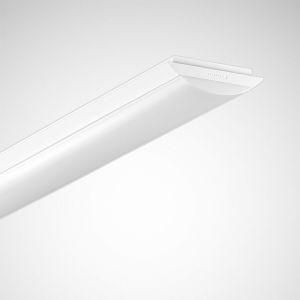

Trilux 6783640 3331 G2 D2 2400 840 ET 01 LED ceiling light

LED surface-mounted luminaires for ceiling and wall mounting. Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D-identification). In conjunction with installation accessories also suitable for sawn ceiling cutouts. Suspended installation possible using optional accessories. Cover made of opal, translucent PMMA with internal prism structure. With symmetrical, wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 22. Rated luminous flux 2400 lm, rated power 21.00 W, luminaire luminous efficacy 114 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Sheet steel, contour-adapted to the convex tub shape, with integrated cable duct for mains supply and forwarding. Dimensions (L x W): 1194 mm x 212 mm, luminaire height 70 mm. Plastic head pieces color-coordinated with luminaire body. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP50, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.4 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
