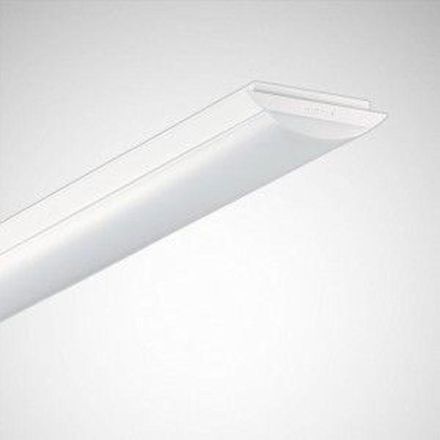

Trilux 6783651 3331 G2 D2 2400 840 ETDD 01 LED ceiling light

Trilux 6783651 3331 G2 D2 2400 840 ETDD 01 LED ceiling light

In stock

SKU: 849556

Price on request

€353.06

€0

Overview

LED surface-mounted luminaires for ceiling and wall mounting. Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D-identification). In conjunction with installation accessories also suitable for sawn ceiling cutouts. Suspended installation possible using optional accessories. Cover made of opal, translucent PMMA with internal prism structure. With symmetrical, wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 22. Rated luminous flux 2400 lm, rated power 21.00 W, luminaire luminous efficacy 114 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Sheet steel, contour-adapted to the convex tub shape, with integrated cable duct for mains supply and forwarding. Dimensions (L x W): 1194 mm x 212 mm, luminaire height 70 mm. Plastic head pieces color-coordinated with luminaire body. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP50, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.4 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	21 W
Rated luminous flux according to IEC 62722-2-1:	2400 lm
Suitable for number of lamps:	1
Length:	1194 mm
Width:	212 mm
Height/depth:	70 mm
Protection rating (IP):	IP50
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	230 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Suitable for wall mounting:	yes
Energy efficiency class of the permanently installed light source:	other
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 25 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Structured plastic
Light distributor:	Diffuser lens/optics/panel
Installation height/depth:	22 mm
Without Dimming function:	no
Installation width:	190 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	electronic transformer
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	yes
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Installation length:	1172 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With louvers:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	yes
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	114 lm/W
Power factor:	0.9
Type of wiring:	suitable for through wiring
Number of poles:	5

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HAB3331 G2 D2 2400 840 ETDD 01

Manufacturer

HAN6783651

GTIN4018242357505

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-12400lm

Rated ambient temperature according to IEC62722-2-1-20 to 25 °C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Width212 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width190 mm

Installation height/depth22 mm

Installation length1172 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth70 mm

Power factor0.9

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy114lm/W

LampsLED replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1194 mm

Max. system performance21 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionNo

Number of poles5

Impact resistanceIK03

IP protection)IP50

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic structured

Housing materialSteel
