Trilux 6826751 Lunexo H2 CDP I 8800 830 ETDD +LLWC 01 LED ceiling light, white

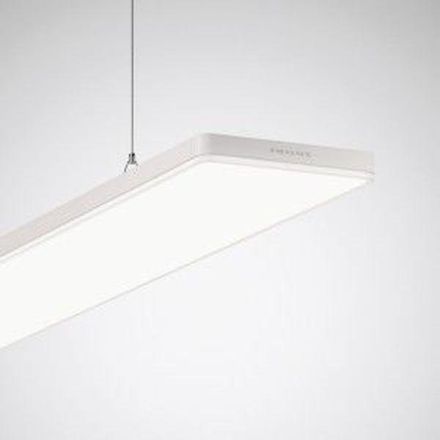

Exclusive rectangular LED pendant light with rounded corners and visible light edge. With integrated LiveLink WiFi control unit for daylight-dependent control and presence detection as well as WLAN module for secure commissioning and operation (WPA2 encryption). Predefined room configurations (use cases) with all planning-relevant data enable simple and quick commissioning. Control of up to 64 DALI participants. Commissioning is carried out using the LiveLink Install commissioning app for tablet PCs. Pendant light for single light application. Suspended installation using Y-cable suspension included in delivery. With internal micro-prismatic CDP-I. Satin PMMA cover panel with side light exit edge. Gentle lighting effect with absolutely no glare. With direct-indirect light distribution. Glare assessment according to UGR classification (EN 12464-1) < 16. Suitable for computer workstations in accordance with EN 12464-1 Rated luminous flux 8300 lm, rated power 75.00 W, luminaire luminous efficacy 110 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of extruded aluminum profile. Headpieces made of die-cast aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1500 mm x 200 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 10.5 kg. Wire suspension and electrical connection cable included in delivery. Standard pendant length: 1500 mm. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The luminaire is suitable for operation on a 230V direct current network (DC). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Number of occupied DALI participants: {Reference (AttributeDefinition) not found: pattr86620648355808}. The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
