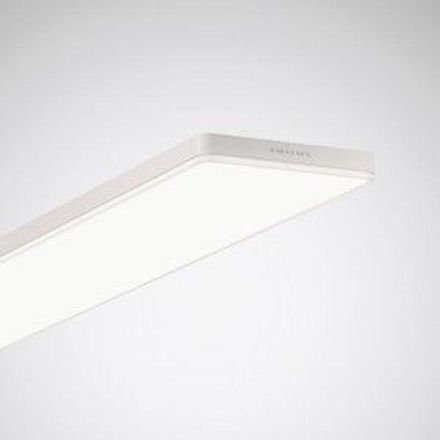

Trilux 6828851 Lunexo D1 CDP I 4400 840 ETDD +LLWC 01 LED ceiling light, white

Exclusive rectangular LED surface-mounted luminaire with rounded corners and visible light edge. With integrated LiveLink WiFi control unit for daylight-dependent control and presence detection as well as a WiFi module for secure commissioning and operation (WPA2 encryption). Predefined room configurations (use cases) with all planning-relevant data enable quick and easy commissioning. Control of up to 64 DALI participants. Commissioning is carried out using the LiveLink Install commissioning app for tablet PCs. Surface-mounted luminaire for ceiling mounting indoors. For single luminaire applications. With internal micro-prismatic CDP-I. Satin-finished PMMA cover panel with side light emission edge. Gentle lighting effect with absolutely no glare. Suitable for computer workstations in accordance with EN 12464-1 Rated luminous flux 4400 lm, rated power 46.00 W, luminaire luminous efficacy 95 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of extruded aluminum profile. Head pieces made of die-cast aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1200 mm x 200 mm, luminaire height 49 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 8.5 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Number of occupied DALI participants: {Reference (AttributeDefinition) not found: pattr86620648355808}. The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
