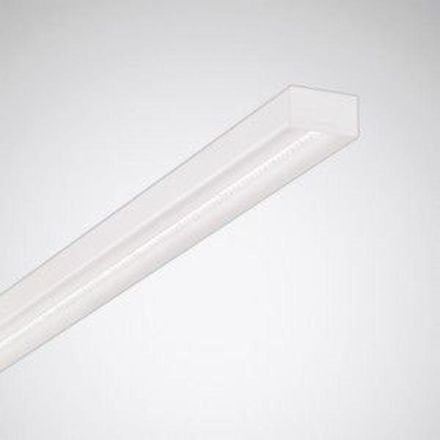

Trilux 6894740 SFlow D1 L MRW LED 3200 830 ET 01 LED ceiling light

LED surface-mounted luminaire for single or strip light applications. For wall or ceiling mounting indoors. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFlow ZBP L1). For panel ceilings in module 100. Optical system in micro reflector technology (MRW) with highly efficient reflector chambers made of white polished plastic for high lighting comfort and efficiency. With additional clear cover plate integrated in the optical system for flush mounting on the room side and protection of the LED. Discreet lateral light output over the entire length of the luminaire. With symmetrical, wide-beam light distribution. LED system and luminaire optics can be snapped into the luminaire body as an assembly without tools. Assembly secured with a steel cable to prevent falling during assembly. Rated luminous flux 3100 lm, rated power 23.00 W, luminaire luminous efficacy 134 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1132 mm x 84 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.2 kg. The mains connection is made using plug-in terminals. The components are electrically connected automatically. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
