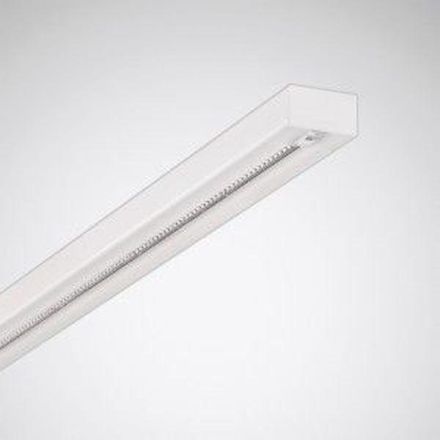

Trilux 6916051 SFlow D3 L MRX LED 4000 840 ETDD LLWM 01 LED ceiling light, white

In stock
SKU: 851389
€1,030.47
Into a basketIn the basketGo

Overview

LED surface-mounted luminaire for individual or strip lighting applications. For wall or ceiling mounting indoors. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFlow ZBP L2). For panel ceilings in module 100. Optical system in micro reflector technology (MRX) with highly efficient, aluminum-coated reflector chambers made of plastic for high glare control and efficiency. Discreet lateral light output over the entire length of the luminaire. With symmetrical, wide-beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 1500 cd/m2 for beam angles above 65° all around. LED system and luminaire optics can be snapped into the luminaire body as an assembly without tools. Assembly secured with a steel cable to prevent it from falling during assembly. Rated luminous flux 4000 lm, rated power 30.00 W, luminaire luminous efficacy 133 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1473 mm x 84 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.4 kg. The mains connection is made using plug-in terminals. The electrical connection of the modules is automatic. With electronic control gear, digitally dimmable (DALI). The luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. With integrated LiveLink WiFi control unit and LiveLink Sensor IR Micro for daylight-dependent control and presence detection as well as a WLAN module for secure commissioning and operation (WPA2 encryption). Predefined room configurations (use cases) with all planning-relevant data enable quick and easy commissioning. Control of up to 64 DALI participants. Commissioning is carried out using the LiveLink Install commissioning app for tablet PCs. LiveLink sensor for daylight-dependent control and presence detection. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the run-on time to the use of the room. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI participants. Temperature range -25 °C - +55 °C. Integrated pyro sensor for the highest detection quality with 168 detection zones. A presence area of 16 m2 enables the detection of the smallest movements. Square detection, presence detection squares max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended mounting height of 2.8 m, permissible mounting height 2.5 m to 4 m. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

>no
Property Value
Max. System power: 28 W
Rated luminous flux according to IEC 62722-2-1: 4000 lm
Suitable for number of lamps: 1
Length: 1473 mm
Width: 84 mm
Height/depth: 45 mm
Protection rating (IP): IP20
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 230 V
Housing colour: white
Housing material: steel
Color temperature: 4000 K
Impact resistance: IK03
Color rendering index CRI: 80-89
Suitable for Ceiling mounting: yes
Suitable for wall mounting: no
Energy efficiency class of the built-in light source: other
Voltage type: AC
With motion detector: no
Beam angle: wide beam 41-80°
With light source: yes
Light source: LED replaceable
Rated ambient temperature according to IEC62722-2-1: -20 to 25 °C
Socket: other
Connection type: plug-in terminal
With operating device: yes
Cover material: without cover
Light distributor: other
Without dimming function: no
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: electronic transformer
Suitable for recessed mounting: yes
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: yes
Suitable for light strip configuration: yes
Suitable for Pendant suspension: yes
Suitable for surface mounting: yes
Suitable for emergency lighting: no
Design of the grid: high-gloss
Covering of the lamp with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS:
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: yes
Dimming Mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: yes
Dimming Zigbee: no
Dimming with push button: yes
Dimming depending on operating device: yes
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Luminaire luminous efficacy: 143 lm/W
Power factor: 0.95
Type of wiring: suitable for through wiring
Number of poles: 5

Characteristics

Energy efficiency class of the permanently installed light sourceOther
HABSFlow D3 L MRX LED 4000 840 ETDD LLWM 01
ManufacturerTrilux
HAN6916051
GTIN4018242377626
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridHigh gloss
Beam angleWide beam 41-80°
Rated luminous flux according to IEC 62722-2-14000lm
Rated ambient temperature according to IEC62722-2-1-20 to 25 °C
Operating deviceElectronic transformer
Suitable for computer workstations according to EN 12464-1Yes
Width84 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimYes
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonYes
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for number of lamps1
Suitable for light strip configurationYes
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Suitable for wall mountingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth45 mm
Power factor0.95
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy143lm/W
LampsLED replaceable
Light emissionDirect
Light colorWhite
Light distributorOther
Light distributionSymmetrical
Length1473 mm
Max. system performance28W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage230V
Without dimming functionNo
Number of poles5
Impact resistanceIK03
IP protection)IP20
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialWithout cover
Housing materialSteel
