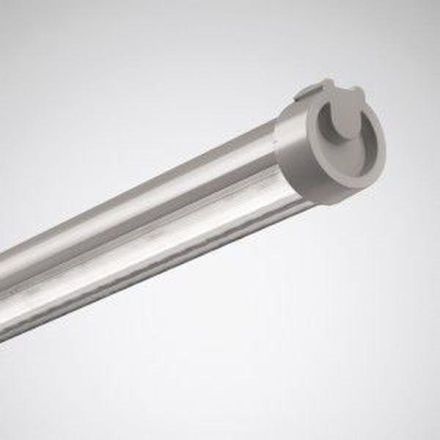

Trilux 7115440 Duroxo G2 B LED6500-840 ET LED ceiling light

Trilux 7115440 Duroxo G2 B LED6500-840 ET LED ceiling light

In stock

SKU: 852243

Price on request

€552.86

€0

Overview

LED tube light made of impact-resistant PMMA. Surface-mounted light for damp rooms, covered and uncovered outdoor areas. The light is suitable for use in chlorine-contaminated atmospheres (e.g. swimming pools). Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). Light with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D identification). Suitable for ceiling, wall or suspended mounting using appropriate accessories. Mounting clips for mounting on solid surfaces included in delivery. For mounting on moving or vibrating surfaces, fastening using pipe clamps is required. The accessories must be ordered separately. The LED tube light can be rotated and aligned 360° on its own axis when mounted with pipe clamps. The alignment of several lights with one another is supported by a scale on the light body. With symmetrical, wide-beam light distribution. Rated luminous flux 6700 lm, rated power 45.00 W, luminaire luminous efficacy 148 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 50 °C) = 100,000 h. Luminaire body made of impact-resistant PMMA. End caps made of impact-resistant, weather-resistant plastic (ASA). Dimensions (L x W): 1345 mm x 113 mm, luminaire height 126 mm. Permissible ambient temperature (ta): -25 °C - +50 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP69K, shock resistance according to IEC 62262: IK10, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.2 kg. With connecting cable NYY-J 3x1.5 mm2, 3000 mm. With electronic control gear, switchable. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	45 W
Rated luminous flux according to IEC 62722-2-1:	6700 lm
Suitable for number of lamps:	1
Length:	1345 mm
Width:	113 mm
Height/depth:	126 mm
Protection rating (IP):	other
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	230 V
Housing color:	other
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK10
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	100 mm
Energy efficiency class of the permanently installed light source:	other
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-25 to 35 °C
Socket:	other
Connection type:	other
With control gear:	yes
Cover material:	transparent plastic
Light distributor:	other
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	electronic transformer
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Rated service life L70/B50 at 25 °C:	100000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	149 lm/W
Power factor:	0.95
Wiring type:	Termination
Number of poles:	3

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HABDuroxo G2 B LED6500-840 ET

Manufacturer

HAN7115440

GTIN4018242415410

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Execution of the gridWithout

Beam angleWide beam 41-80°

Outer diameter100 mm

Rated lifetime L70/B50 at 25 °C100000 hours

Rated luminous flux according to IEC 62722-2-16700lm

Rated ambient temperature according to IEC62722-2-1-25 to 35 °C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Width113 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorOther

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth126 mm

Power factor0.95

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy149lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1345 mm

Max. system performance45W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK10

IP protection)Other

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialPlastic
