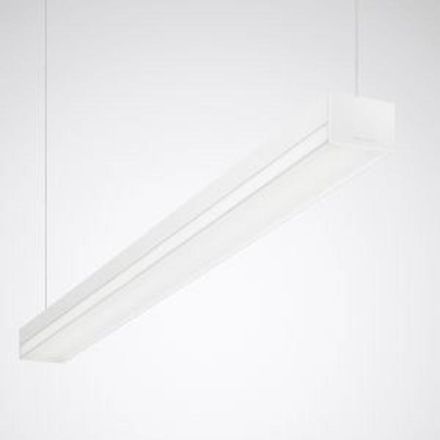

Trilux 7358240 SFlow H2-L CDP-I 6300-840 ET 01 LED ceiling light, white

Trilux 7358240 SFlow H2-L CDP-I 6300-840 ET 01 LED ceiling light, white

In stock

SKU: 859803

Price on request

€526.86

€0

Overview

LED pendant light for single or strip light applications. For suspended installation. As a single light or in strip light application. With highly efficient CDP microprismatics. The microstructured PMMA prism surface of the optical system has an anti-glare effect, is non-yellowing and does not cloud. Prism structure on the inside, surface of the cover on the room side is smooth. With direct-indirect light distribution. With symmetrical deep-wide light distribution. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 1500 cd/m2 for beam angles above 65° all around. Rated luminous flux 6300 lm, rated power 47.00 W, luminaire luminous efficacy 134 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1413 mm x 100 mm, luminaire height 70 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.6 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.

Property	Value
Max. System power:	47 W
Rated luminous flux according to IEC 62722-2-1:	6300 lm
Color temperature:	4000 K
Length:	1413 mm
Width:	100 mm
Socket:	other
Suitable for number of bulbs:	1
Height/depth:	70 mm
Protection type (IP):	IP20
Protection class:	I
Pendant length:	2000 mm
Operating device:	electronic transformer
Housing material:	steel
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With Operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	no
Cover material:	transparent plastic
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	yes
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for Emergency light:	no
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	other
Energy efficiency class of the built-in light source:	other
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Power factor:	0.95
Type of wiring:	suitable for through wiring
Number of poles:	3
Connection type:	Plug-in terminal

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HABSFlow H2-L CDP-I 6300-840 ET 01

Manufacturer

HAN7358240

GTIN4018242487691

Suspension includedNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated luminous flux according to IEC 62722-2-16300lm

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1Yes

Width100 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth70 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1413 mm

Max. system performance47W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Pendulum length2000 mm

Number of poles3

ReflectorWithout

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialSteel
