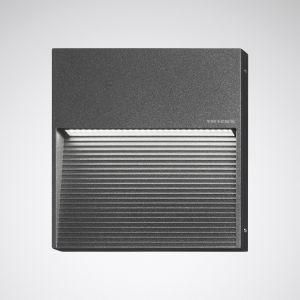

Trilux 7388240 Invego Square W2 AM16L/350-940 1G1 ET LED ceiling light

Trilux 7388240 Invego Square W2 AM16L/350-940 1G1 ET LED ceiling light

In stock

SKU: 857185

Price on request

€343.48

€0

Overview

Design-oriented, very flat surface-mounted or recessed luminaire for coordinated lighting concepts indoors and outdoors. Luminaire in a square design. For surface mounting or using accessories ordered separately (Invego...BE concrete casting housing with fastening set) for flush installation indoors and outdoors. Rated luminous flux 338 lm, rated power 9.70 W, luminaire luminous efficacy 34 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 90. Color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. Luminaire body made of die-cast aluminum. Cover plate made of tempered glass. High impact resistance. Color of luminaire body anthracite, similar to DB 703, powder-coated (DB 703). Dimensions (L x W): 200 mm x 200 mm, luminaire height 30 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK08. Weight: 1.9 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.

Property	Value
Max. System power:	9.7 W
Rated luminous flux according to IEC 62722-2-1:	338 lm
Suitable for number of lamps:	1
Length:	200 mm
Width:	200 mm
Height/depth:	30 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	240 V
Housing color:	anthracite
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	no
Suitable for wall mounting:	yes
Energy efficiency class of the built-in light source:	other
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	Plug-in terminal
With control gear:	yes
Cover material:	Structured plastic
Light distributor:	Focus lens
Installation height/depth:	121 mm
Without Dimming function:	yes
Installation width:	217 mm
Light emission:	direct
Light distribution:	asymmetrical
With light sensor:	no
Operating device:	electronic transformer
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Installation length:	217 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With louvers:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Luminaire luminous efficacy:	35 lm/W
Power factor:	0.9
Type of wiring:	Termination
Number of poles:	3

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HABInvego Square W2 AM16L/350-940 1G1 ET

Manufacturer

HAN7388240

GTIN4018242514632

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleMedium beam 21-40°

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1338lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Width200 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width217 mm

Installation height/depth121 mm

Installation length217 mm

Color temperature4000K

Color rendering index CRI90-100

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11Without

Height/Depth30 mm

Power factor0.9

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy35lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorFocus lens

Light distributionAsymmetrical

Length200 mm

Max. system performance9.7W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage240V

Without dimming functionYes

Number of poles3

Impact resistanceIK08

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic structured

Housing materialAluminum
