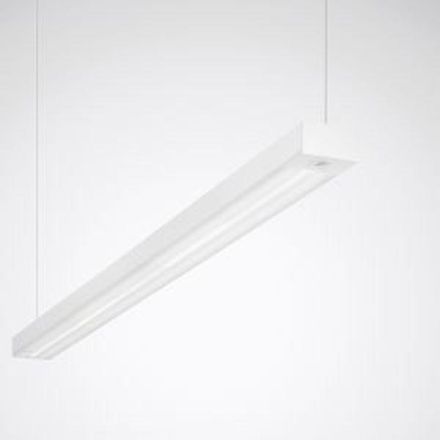

Trilux 7573851 SFlow H3-L LW19 6400-840 ETDD LLWS 01 LED ceiling light, white

LED pendant light for single or strip light applications. For suspended installation. As a single light or in strip light application. Optical system with PMMA lens technology. Cover panel made of translucent PMMA for high glare control and efficiency. With direct-indirect light distribution. Glare rating according to UGR classification (EN 12464-1) < 16. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 1500 cd/m2 for beam angles above 65° all round. Rated luminous flux 6400 lm, rated power 44.00 W, luminous efficacy of the luminaire 145 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1473 mm x 84 mm, luminaire height 45 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.4 kg. Operating device in accordance with the DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The operating device is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). With electronic operating device, digitally dimmable (DALI). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. With integrated LiveLink Sensor IR Micro for connection to a LiveLink control device for daylight-dependent control and presence detection. Connection and electrical supply via the DALI interface of the LiveLink control device Occupies 2 DALI participants. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the follow-up time to the use of the room. Temperature range -25 °C - +55 °C. Integrated pyrosensor for the highest detection quality with 168 detection zones. A presence area of 16 m2 enables the detection of the smallest movements. Square detection, detection squares presence max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended installation height of 2.8 m, permissible installation height 2.5 m to 4 m. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body.
