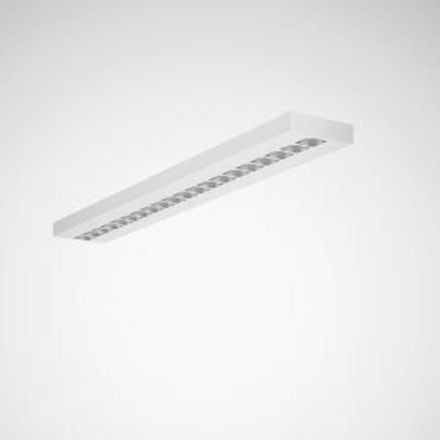

Trilux 7730151 Creavo D2-L LWW-03 42-840 ETDD 01 LED ceiling light, white

Rectangular LED ceiling surface-mounted light with light elements made of lens systems and cubic anti-dazzle elements with high efficiency. Surface-mounted light for individual or strip lighting applications. Can also be used as a direct-beaming, suspended light in combination with accessories that must be ordered separately. The optical system with a precisely coordinated combination of LED lenses and anti-dazzle cubes ensures very high visual comfort with very high lighting performance. Designed as a wallwasher. The LED system consists of 20 cubic light elements embedded flush into the light surface. Rated luminous flux 4200 lm, rated power 40.00 W, light output 105 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80 (tq 25 °C) = 100,000 h, average rated service life L90 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel, powder-coated white (RAL 9016). Anti-glare cubes silver gray, with fine surface structure. Dimensions (L x W): 1209 mm x 170 mm, luminaire height 46 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP40, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 5.5 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Control gear is idle-proof and protected against incorrect connection, short circuit, overload and overtemperature. Output ripple of the control gear 4% for effective control of the LED system and flicker-free light. The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires that are coordinated in appearance. Project-specific versions with varying luminaire features are available on request.
