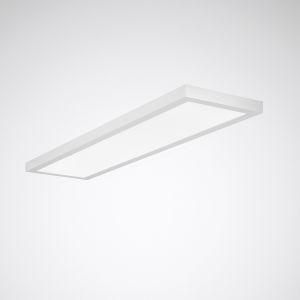

Trilux 7755851 2350 G3 D2 PW19 4000-8MC ETDD LED ceiling light

Trilux 7755851 2350 G3 D2 PW19 4000-8MC ETDD LED ceiling light

In stock

SKU: 869152

Price on request

€200.72

€0

Overview

LED ceiling surface-mounted luminaire with translucent PMMA cover panel. For ceiling mounting indoors. Cover panel made of translucent PMMA with photometrically effective prism structure. With symmetrical deep-wide light distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Luminaire luminous flux adjustable in 2 stages. Rated luminous flux 4000 lm, rated power 36.00 W, luminaire luminous efficacy 111 lm/W. Light color warm white or neutral white, correlated color temperature (CCT) variable (3000 K - 4000 K), general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 5 SDCM, average rated service life L65(tq 25 °C) = 50,000 h. Luminaire body made of aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1225 mm x 325 mm, luminaire height 46 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.6 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	36 W
Rated luminous flux according to IEC 62722-2-1:	4000 lm
Suitable for number of lamps:	1
Length:	1225 mm
Width:	325 mm
Height/depth:	46 mm
Protection rating (IP):	IP50
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Energy efficiency class of the built-in light source:	other
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Light distributor:	other
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	electronic transformer
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	yes
Dimming Zigbee:	no
Dimming with push button:	yes
Dimming dependent on operating device:	yes
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	111 lm/W
Power factor:	0.95
Number of poles:	5
Conductor cross-section:	1.5 mm²

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HAB2350 G3 D2 PW19 4000-8MC ETDD

Manufacturer

HAN7755851

GTIN4018242589241

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Execution of the gridWithout

Beam angleWide beam 41-80°

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14000lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1Yes

Width325 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonYes

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth46 mm

Power factor0.95

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy111lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1225 mm

Max. system performance36W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles5

Impact resistanceIK02

IP protection)IP50

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Housing materialAluminum
