Trilux 7790140 2340 G2 WD1 LED 14/08/ML-8MC ET LED ceiling light

Trilux 7790140 2340 G2 WD1 LED 14/08/ML-8MC ET LED ceiling light

In stock

SKU: 930974

Price on request

€38.77

€0

Overview

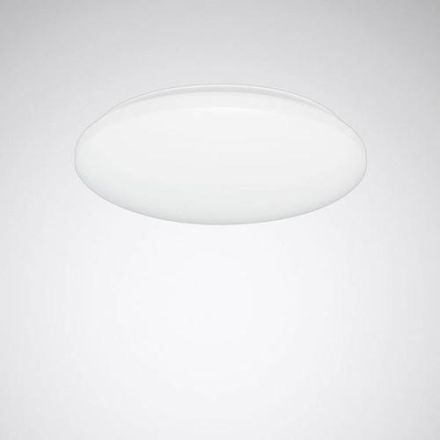

Round LED surface-mounted luminaire with polystyrene cover. For wall or ceiling mounting. Bayonet lock holds the cover securely. Round, opal cover, spherically shaped. With Lambertian light intensity distribution. Luminaire luminous flux adjustable in 2 stages. Minimum luminaire luminous flux 760 lm, rated power 8.00 W. Maximum luminaire luminous flux 1300 lm, rated power 13.00 W. Luminaire luminous efficacy 95 lm/W. Light color warm white or neutral white, correlated color temperature (CCT) adjustable in 2 stages (3000 K / 4000 K), general color rendering index (CRI) Ra > 80. Average rated service life L65 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Luminaire body made of aluminum. Surface coated white (RAL 9016). Diameter of the cover Ø 330 mm, luminaire height 85 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 0.9 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	8 W
Rated luminous flux according to IEC 62722-2-1:	800 lm
Suitable for number of lamps:	1
Height/depth:	85 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	other
Color temperature:	4000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	330 mm
Energy efficiency class of the permanently installed light source:	other
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Light distributor:	diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
Operating device:	electronic transformer
Suitable for built-in installation:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the light with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	no
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	100 lm/W
Power factor:	0.9
Number of poles:	3
Conductor cross-section:	1.5 mm²

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HAB2340 G2 WD1 LED 14/08/ML-8MC ET

Manufacturer

HAN7790140

GTIN4018242593453

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Outer diameter330 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1800lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth85 mm

Power factor0.9

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy100lm/W

LampsLED replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance8W

With operating deviceYes

With motion detectorNo

With light sourceYes

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Housing materialOther
