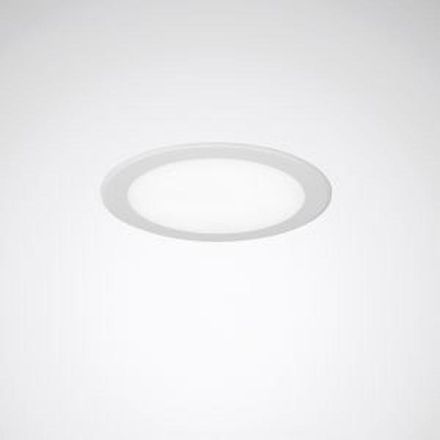

Trilux 7791140 2325 G3 C05 OA LED 20/14/08/ML-8MC ET LED recessed ceiling spotlight

Trilux 7791140 2325 G3 C05 OA LED 20/14/08/ML-8MC ET LED recessed ceiling spotlight

In stock

SKU: 893018

Price on request

€45.98

€0

Overview

LED downlight for ceilings with a cavity size of 50 mm. Tool-free ceiling installation using quick-mounting springs. Ceiling cutout Ø 140 mm, installation depth 43 mm. With opal PMMA cover panel. With symmetrical, wide-beam light distribution. Luminaire luminous flux adjustable in 3 stages. Rated luminous flux 2000 lm - 1400 lm, rated power 19.00 W - 13.00 W, luminaire luminous efficacy 105 lm/W - 107 lm/W. Light color warm white or neutral white, correlated color temperature (CCT) adjustable in 2 stages (3000 K / 4000 K), general color rendering index (CRI) Ra > 80. Average rated service life L70(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Lamp body made of PC. Ceiling ring white powder-coated (RAL 9016). External dimensions of ceiling ring Ø 170 mm, lamp height 43 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: . Weight: 0.4 kg. The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	19 W
Rated luminous flux according to IEC 62722-2-1:	2000 lm
Housing color:	white
Housing material:	plastic
Protection class (IP):	IP20
Outer diameter:	170 mm
Socket:	other
Light source:	LED replaceable
Protection class:	I
With light source:	yes
Installation height/depth:	43 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	43 mm
With motion detector:	no
Nominal voltage:	220 to 240 V
Beam angle:	free beam/diffuse
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	electronic transformer
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	other
Suitable for number of bulbs:	1
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	other
Adjustability:	not adjustable
Suitable for pendulum suspension:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	untreated
Brushed surface:	no
Dimming depends on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
DMX dimming:	no
DSI dimming:	no
Potentiometer dimming (device-integrated):	no
GPRS dimming:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	diffuser lens/optics/panel
Light emission:	direct
Energy efficiency class of the built-in lamp:	other
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Power factor:	0.95
Connection type:	Plug-in terminal
Luminous efficacy:	105 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Photobiological safety in accordance with EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HAB2325 G3 C05 OA LED 20/14/08/ML-8MC ET

Manufacturer

HAN7791140

GTIN4018242593552

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Beam angleFree-radiating/diffuse

Outer diameter170 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12000lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth43 mm

Color consistency (McAdam ellipse)SDCM4

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for rope systemNo

Housing colorWhite

Height/Depth43 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy105lm/W

LampsLED replaceable

Light emissionDirect

Light colorOther

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance19 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfaceUntreated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

ReflectorOther

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Housing materialPlastic
