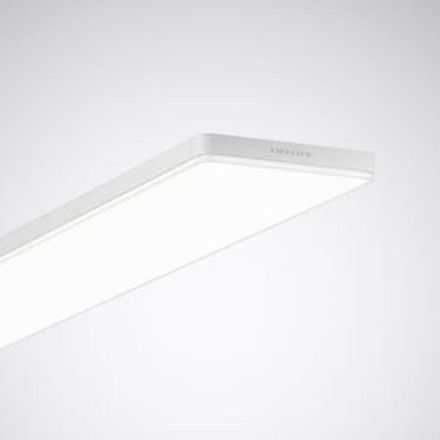

Trilux 7793062 LunexoAct D1 CDP-I 4400 ETDD8 +LLWC 01 LED ceiling light, white

Exclusive rectangular LED surface-mounted luminaire with rounded corners and visible light edge. Luminaire with Active equipment for controlling the light color using a separate control unit. Surface-mounted luminaire for ceiling mounting indoors. For single luminaire application. With internal CDP-I micro-prismatic. Satin-finished PMMA cover panel with lateral light exit edge. Gentle lighting effect with absolutely no glare. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for computer workstations in accordance with EN 12464-1 LED panels equipped with LEDs in the light color warm white and daylight white. The following information on the luminaire luminous flux and the system connected load refer to the operation of this luminaire with dynamically adjustable light color (HCL) in the warm white light color operating mode (2700 K). Rated luminous flux 4400 lm, rated power 56.00 W, luminaire luminous efficacy 78 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. Luminaire body made of extruded aluminum profile. Head pieces made of die-cast aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1200 mm x 200 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 8.9 kg. With two electronic control gears, digitally dimmable (DALI DT8). Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). With integrated LiveLink WiFi control unit for daylight-dependent control and presence detection as well as WLAN module for secure commissioning and operation (WPA2 encryption). Predefined room configurations (use cases) with all planning-relevant data enable simple and quick commissioning. Control of up to 64 DALI participants. Commissioning is carried out using the LiveLink Install commissioning app for tablet PCs. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
