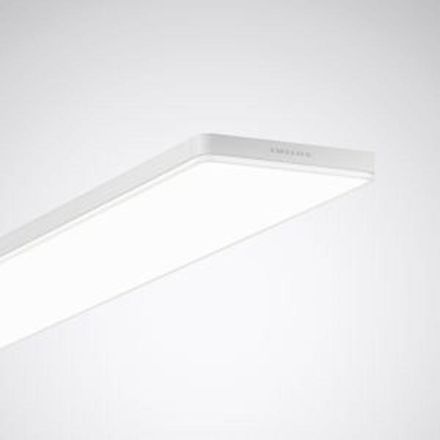

Trilux 7793362 LunexoAct D2 CDP-I 5500 ETDD8 +LLWM 01 LED ceiling light, white

Exclusive rectangular LED surface-mounted luminaire with rounded corners and visible light edge. Luminaire with Active equipment for controlling the light color using a separate control unit. Surface-mounted luminaire for ceiling mounting indoors. For single luminaire application. With internal micro-prismatic CDP-I. Satin-finished PMMA cover panel with lateral light exit edge. Gentle lighting effect with absolutely no glare. Suitable for computer workstations in accordance with EN 12464-1 LED panels equipped with LEDs in the light color warm white and daylight white. The following information on the luminaire luminous flux and the system connected load refer to the operation of this luminaire with dynamically adjustable light color (HCL) in the light color warm white operating mode (2700 K). Rated luminous flux 5500 lm, rated power 66.00 W, luminaire luminous efficacy 83 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. Luminaire body made of extruded aluminum profile. Head pieces made of die-cast aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1500 mm x 200 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 10.5 kg. With two electronic control gears, digitally dimmable (DALI DT8). Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). With integrated LiveLink WiFi control unit and LiveLink Sensor IR Micro for daylight-dependent control and presence detection as well as WLAN module for secure commissioning and operation (WPA2 encryption). Predefined room configurations (use cases) with all planning-relevant data enable simple and quick commissioning. Control of up to 64 DALI participants. Commissioning is carried out using the LiveLink Install commissioning app for tablet PCs. LiveLink sensor for daylight-dependent control and presence detection. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the follow-up time to the use of the room. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI participants. Temperature range -25 °C - +55 °C. Integrated pyro sensor for the highest detection quality with 168 detection zones. A presence area of 16 m2 enables the detection of the smallest movements. Square detection, detection squares presence max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended mounting height of 2.8 m, permissible mounting height 2.5 m to 4 m. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
