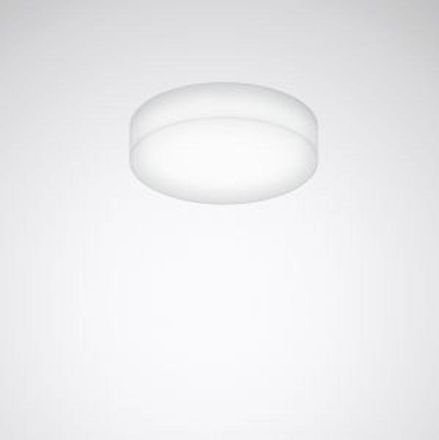

Trilux 7934962 SolegraAct WD1 OTA 2600 ETDD8 LED ceiling light, white

Round LED wall and ceiling light in a straight, cylindrical design. Light with Active equipment for controlling the light color using a separate control unit. The surface of the cover can be customized using an optional, colored profile frame (ZP). For ceiling and wall mounting. Suspended installation possible using optional accessories. The cover is attached to the light body using an easy-to-use bayonet lock technology with anti-twist protection. With a cylindrical cover made of translucent PMMA. Increased lighting comfort through decorative ceiling illumination. Harmonious lighting effect thanks to evenly illuminated light output. The following information on the luminaire luminous flux and the system connected load refer to the operation of this luminaire with dynamically adjustable light color (HCL) in warm white light color operating mode (2700 K). Rated luminous flux 2700 lm, rated power 19.00 W, luminaire luminous efficacy 142 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Diameter of the cover Ø 400 mm, luminaire height 121 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.3 kg. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8 capable control unit. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
