Trilux 7957540 Aviella D05 OA 1200-830 ET 01 LED ceiling light

Trilux 7957540 Aviella D05 OA 1200-830 ET 01 LED ceiling light

In stock

SKU: 931391

Price on request

€72.11

€0

Overview

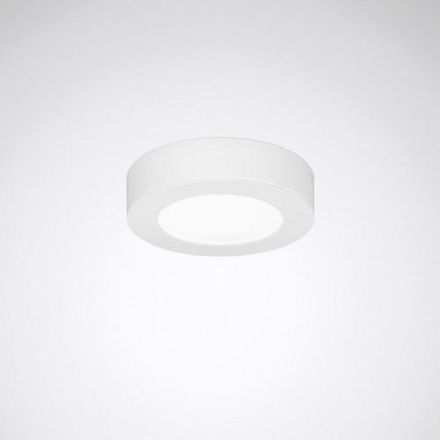

Round LED ceiling surface-mounted luminaire with opal PMMA cover plate. With opal PMMA cover plate. With symmetrical wide beam light distribution. Rated luminous flux 1300 lm, rated power 15.00 W, luminaire luminous efficacy 86 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 50,000 h. Luminaire body made of die-cast aluminum. Luminaire body powder-coated white (RAL 9016). Luminaire diameter Ø 180 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): II, protection type (DIN EN 60529): IP40, shock resistance according to IEC 62262: IK05, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 0.7 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	15 W
Rated luminous flux according to IEC 62722-2-1:	1300 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP40
Outer diameter:	180 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Height/depth:	45 mm
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Beam angle:	free-radiating/diffuse
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	electronic transformer
Impact resistance:	IK05
Luminaire with limited surface temperature 'D-mark':	no
Suitable for number of bulbs:	1
Luminous flux:	1300 lm
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Adjustability:	not adjustable
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Light emission:	direct
Energy efficiency class of the built-in lamp:	other
Total harmonic distortion (THD):	14
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 0 °C
Power factor:	0.9
Number of poles:	2
Connection type:	Plug-in terminal
Luminous efficacy:	87 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Energy efficiency class of the permanently installed light sourceOther

Total harmonic distortion (THD)14

HABAviella D05 OA 1200-830 ET 01

Manufacturer

HAN7957540

GTIN4018242649068

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Beam angleFree-radiating/diffuse

Outer diameter180 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11300lm

Rated ambient temperature according to IEC62722-2-1-20 to 0 °C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM4

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for rope systemNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth45 mm

Power factor0.9

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy87lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1300lm

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance15W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

Impact resistanceIK05

IP protection)IP40

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Housing materialAluminum
