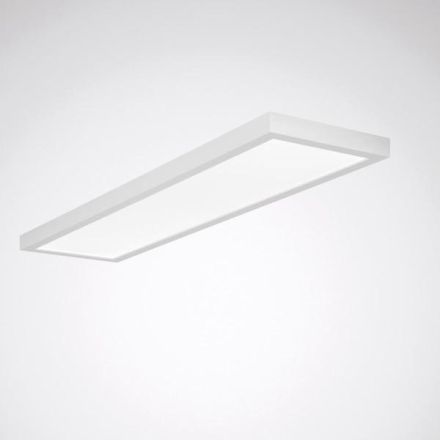

Trilux 8157651 Siella G5 D2 PW19 40-830 ETDD LED ceiling light

Trilux 8157651 Siella G5 D2 PW19 40-830 ETDD LED ceiling light

In stock

SKU: 915747

Price on request

€280.23

€0

Overview

LED ceiling surface-mounted luminaire with prismatic cover. For flush mounting. With deep-wide light distribution. Glare assessment according to UGR classification (EN 12464-1) < 19. Screen-compatible in accordance with EN 12464-1 due to limited luminance L 3000 cd/m2 for beam angles above 65° all around. Rated luminous flux 4000 lm, rated power 33.00 W, luminaire luminous efficacy 121 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 50,000 h. Luminaire body made of aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1213 mm x 313 mm, luminaire height 46 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 5.1 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	33 W
Rated luminous flux according to IEC 62722-2-1:	4000 lm
Suitable for number of lamps:	1
Length:	1213 mm
Width:	313 mm
Height/depth:	46 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Energy efficiency class of the built-in light source:	other
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 0 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Light distributor:	other
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
Operating device:	electronic transformer
Suitable for built-in installation:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	yes
Dimming Zigbee:	no
Dimming with push button:	yes
Dimming dependent on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	121 lm/W
Power factor:	0.95
Number of poles:	5

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HABSiella G5 D2 PW19 40-830 ETDD

Manufacturer

HAN8157651

GTIN4018242671380

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Execution of the gridWithout

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-14000lm

Rated ambient temperature according to IEC62722-2-1-20 to 0 °C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1Yes

Width313 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonYes

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth46 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy121lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1213 mm

Max. system performance33W

With operating deviceYes

With motion detectorNo

With light sourceYes

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles5

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Housing materialAluminum
