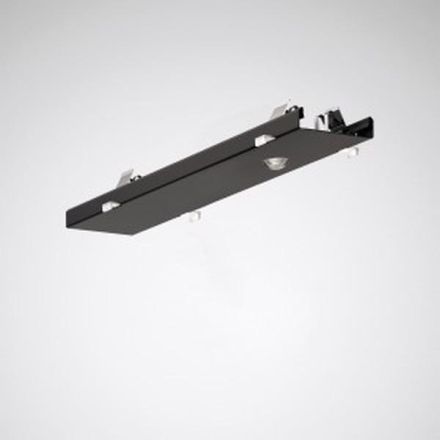

Trilux 7229200 7650Fi L-SLB 24V Inotec L37 05 LED device carrier, black

Device carrier for E-Line strip lighting system with LED safety light for illuminating areas. The device carriers with emergency light module can be combined with a support profile concept through-wiring type 7LV + 5LV. Monitoring in the form of individual light monitoring with detailed plain text / destination information. Design in accordance with DIN0108 - 100, IEC 60598-1, IEC 60598-2-22, DIN 4844 and EN 1838. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). Suitable for combination with support profiles E-Line Fix 0765... with isolating plug spacing 375 mm for IP20. Compatible with support profiles E-Line T5N/LED 07650.... As a single or strip light for direct ceiling mounting and suspended mounting using accessories to be ordered separately. Fastened to the support profile using stainless steel snap fasteners that can be operated without tools. Proper assembly of the device carrier with the support profile is confirmed by a clicking sound. The transparent assembly elements made of UV-stabilized polycarbonate can be removed after successful assembly, thus ensuring protection against theft and dismantling. Optical system with optimized light distribution from medium heights (2.5 - 6 m). Maximum light point spacing with surface illumination with 1 lx according to EN 1838, taking into account a maintenance factor of 0.8: 15.5 m. 4-chip LED system for maximum safety. Rated luminous flux 517 lm, rated power 5.70 W, light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra> 70. Color location tolerance (initial MacAdam) 3 SDCM, the light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Equipment carrier made of sheet steel, coated black (RAL 9005). Dimensions (L x W) 368 mm x 62 mm. 75 mm maximum width thanks to locking technology. Permissible ambient temperature (ta): -15 °C - +45 °C. Weight: 0.4 kg. Automatic electrical connection via plug-in contacts with phase selection. The phase is selected without tools. LED driver with integrated individual LED monitoring to detect defective LEDs in the event of a short circuit or interruption. The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Freely programmable switching type for standby light and permanent light of each individual luminaire without a separate bus line. Addressing with a fixed ID without manual addressing. Luminaires can be individually switched and dimmed via the system's control unit. High functional reliability through compliance with international standards for safety and operation, electromagnetic compatibility and immunity to interference. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.
