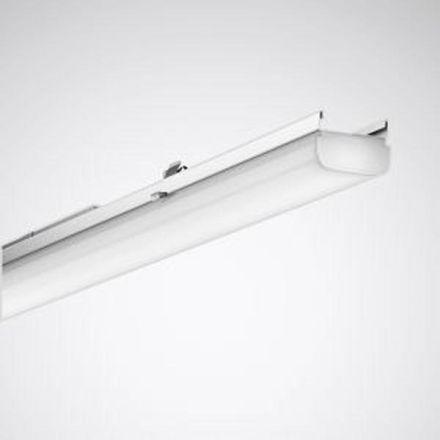

Trilux 7779400 7651 DL 8-840 EB1-Tri Pro L75 01 LED device carrier, white

LED device carrier with emergency light function for E-Line Fix strip lighting system. Nominal operating time of the emergency light function 1 hour. The device carriers with emergency light module can be combined with a support profile concept through-wiring type 7LV + 7LV. Complies with DIN 10500. The luminaires are suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies in the food and beverage industry. Suitable for combination with E-Line Fix 0765... support profiles with 7-core through-wiring (7LV). Fastened to the support profile using stainless steel snap locks that can be operated without tools. Proper installation of the device carrier with the support profile is confirmed by a clicking sound. The transparent mounting elements made of UV-stabilized polycarbonate can be removed after successful installation, thus ensuring protection against theft and dismantling. The optical system consists of a translucent, very flat PMMA cover with a high degree of transmission, installation height 26 mm. Characteristic of the light distribution: lambertian. Recommended installation height: 2.5 - 4 m. Luminaire luminous flux in emergency lighting mode 800 lm, rated power 5.00 W, luminaire luminous efficacy 160 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K. General color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM. Device carrier made of sheet steel. Surface coated white (RAL 9016). Length of device carrier: 737 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Insect-proof lamp compartment due to protection type IP 50. Weight: 1.3 kg. Automatic electrical connection through plug contacts with phase selection. The phase selection is done without tools. With electronic control gear, digitally addressable (DALI). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.
