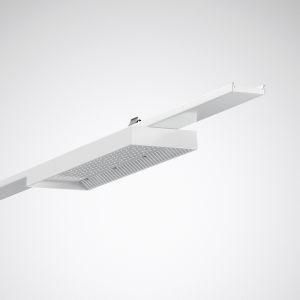

Trilux 7910051 7651IP MironaF B 270-840ETDD L225 01ESG LED device carrier

Equipment carrier for E-Line strip lighting system with 3 integrated LED units of the Mirona Fit high bay spotlight. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). Fastened to the support profile using stainless steel snap locks that can be operated without tools. Proper assembly of the device carrier with the support profile is confirmed by a snapping sound. The transparent assembly elements made of UV-stabilized polycarbonate can be removed after successful assembly, thus ensuring protection against theft and dismantling. Optical system composed of a PC lens optic. Cover plate made of heat-treated single-pane safety glass (ESG-H). With symmetrical, wide-beam light distribution. Rated luminous flux 26300 lm, rated power 157.00 W, luminous efficacy of the luminaire 167 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 45 °C) = 70,000 h, average rated service life L85(tq 45 °C) = 50,000 h. Device carrier made of sheet steel, color white. (RAL 9016). Permissible ambient temperature (ta): -20 °C - +45 °C. Weight: 5.5 kg. Automatic electrical connection through plug contacts with phase selection. The phase is selected without tools. Operating device in accordance with DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing center.
