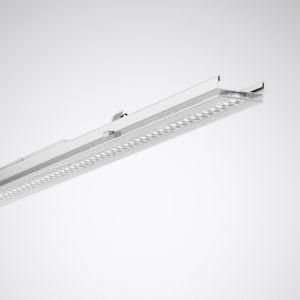

Trilux 9002017018 7651Fi LVN 80-865 ETDD L150 01 LED device carrier

LED device carrier for E-Line light strip system 7651 Fixed. Designed for use in application areas with high technical requirements for the light strip while maintaining economic efficiency. Device carriers with a length of 1474 mm are suitable for setting up new systems as well as for renovation applications in existing systems with E-Line T5N/LED light strip systems. Complies with DIN 10500. The lights are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. For combination with support profiles E-Line Fix 0765.... Compatible with support profiles E-Line T5N/LED 07650.... Device carrier in combination with accessories 07650Fi...IP64 (support profile, cover, head piece) suitable for applications with increased requirements for the protection class (IP64) and for use in fire-hazardous premises in accordance with DIN EN 60598-2-24 (D-identification). Fastened to the support profile using stainless steel snap fasteners that can be operated without tools. Proper assembly of the device carrier with the support profile is confirmed by a snapping sound. The transparent assembly elements made of UV-stabilized polycarbonate can be removed after successful assembly, thus ensuring protection against theft and dismantling. When combining device carriers with different beam characteristics or light output within a light strip application, a harmonious and uniform appearance of the lighting system is created by the uniform design dimensions of the variants. Characteristics of the luminous intensity distribution: very narrow, half-value angle C0: 30°, half-value angle C90: 68°, main beam angle: 0°. The optical system consists of a PMMA lens optic with three coordinated, photometrically effective areas and thus ensures even light distribution and homogeneous illumination. Particularly suitable for area illumination. The light distribution character of the device carrier is determined exclusively by the technical design of the lens optic and does not require any further light-directing components or accessories. Recommended installation height: 8-12 m. With two LED modules (2 x 96 LEDs). Light generation free of infrared (IR) and ultraviolet (UV) components. The luminous flux of the device carrier is electronically parameterized in the production process according to customer requirements. Parameterized rated luminous flux of the device carrier: 8,400 lm. Rated power 50 watts, luminous efficacy of the luminaire 168 lm/W. Light color daylight white, correlated color temperature (CCT) 6500 K, general color rendering index (CRI) 80, color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 35 °C) = 50,000 h. Device carrier made of sheet steel, coated white. Length of device carrier 1,474 mm. Permissible ambient temperature (ta) 35 °C. Degree of protection (DIN EN 60529): IP20 Protection class (EN 61140): I. Impact resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Automatic electrical connection through plug contacts with phase selection. The phase is selected without tools. With mechanical protection against incorrect installation. With electronic control gear, digitally dimmable (DALI). The luminaire is monitoring ready (MOR), provides luminaire data for monitoring or predictive maintenance and is therefore compatible with TRILUX Digital Services (Energy Monitoring and Light Monitoring). The luminaire meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. A special online tool is available for the simple and quick planning and configuration process of the application. The resource-optimized packaging concept of the light strip components makes assembly easier and protects the environment. In addition, the luminaire is ENEC-certified by an independent testing center.
