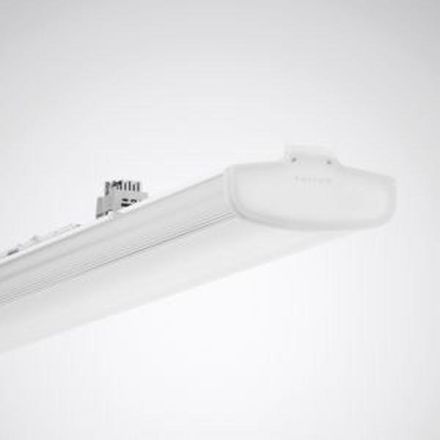

Trilux 9002072995 7651 Act HE PWW 40ETDD8 L150 01 LED device carrier

In stock
SKU: 864283
€426.96
Into a basketIn the basketGo

Overview

LED device carrier for E-Line light strip system 7651 Fix. Device carrier with Activ equipment for controlling the light color using a separate control unit. Designed for use in application areas with high requirements for temperature resistance, luminaire efficiency and service life of the light strip. Device carriers with a length of 1474 mm are suitable for setting up new systems as well as for renovation applications in existing systems with E-Line T5N/LED light strip systems. Complies with DIN 10500. The lights are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. For combination with support profiles E-Line Fix 0765.... Compatible with support profiles E-Line T5N/LED 07650.... Fastened to the support profile using stainless steel snap fasteners that can be operated without tools. Proper assembly of the device carrier with the support profile is confirmed by a clicking sound. The transparent mounting elements made of UV-stabilized polycarbonate can be removed after successful installation, thus ensuring protection against theft and dismantling. When combining device carriers with different beam characteristics or light output within a light strip application, the uniform design dimensions of the variants create a harmonious and uniform appearance of the lighting system. Characteristics of the luminous intensity distribution: wide. Half-value angle: C0 = 94°, C90 = 101°, main beam angle C0 = +/- 28°. The optical system consists of an impact-resistant, prismatic PMMA cover with a high degree of transmission. Distribution of the total luminous intensity distribution (direct/indirect): 72% / 28%. Convexly rounded diffuser. With photometrically effective prisms for directing the luminous flux preferably to the working plane. Homogeneous brightening of the working environment. Suitable for applications with high glare control requirements (UGR I/q = 17.2/19.4). Insect-proof lamp compartment due to protection class IP50. Recommended installation height: 2.5 - 4 m. Luminaire with Active equipment for controlling the light color using a separate control unit (DT8). The following information on the luminaire luminous flux and the system connection power refer to the operation of this luminaire with dynamically adjustable light color (HCL) in warm white light color operating mode (2700 K). With two LED modules (2 x 96 LEDs). Light generation free of infrared (IR) and ultraviolet (UV) components. The luminaire luminous flux of the device carrier is electronically parameterized in the manufacturing process according to customer requirements. Parameterized rated luminous flux of the device carrier: 4,000 lm. Rated power 26 watts, luminaire luminous efficacy 153 lm/W. Light color Active, correlated color temperature (CCT) 2700 K, general color rendering index (CRI) 80, color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 50 °C) = 70,000 h. Device carrier made of sheet steel, coated white. Length of device carrier 1,475 mm. Permissible ambient temperature (ta) 50 °C. Protection type (DIN EN 60529): IP20 Protection class (EN 61140): I. Impact resistance level according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Automatic electrical connection through plug contacts with phase selection. The phase is selected without tools. With mechanical protection against incorrect assembly. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8-capable control unit. The luminaire is Monitoring Ready (MOR), supplies luminaire data for monitoring or predictive maintenance and is therefore compatible with TRILUX Digital Services (Energy Monitoring and Light Monitoring). The luminaire meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. A special online tool is available for the simple and quick planning and configuration process of the application. The resource-optimized packaging concept of the light strip components makes assembly easier and protects the environment.

Property Value
Suitable for number of lamps: 1
Rated luminous flux according to IEC 62722-2-1: 4000 lm
Color temperature: 4000 to 6500 K
With lamp: yes
Operating device: electronic transformer
Length: 1475 mm
Width: 205 mm
Height/depth: 116 mm
Protection rating (IP): IP20
Protection class: I
Light distribution: symmetrical
Light emission: direct/indirect
Suitable for emergency lighting: no
Housing material: Steel
Housing color: white
Color rendering index CRI: 80-89
With operating device: yes
Reflector: without
Socket: other
Nominal voltage: 220 to 240 V
Light source: LED not replaceable
Light color: white
Voltage type: AC
Dimming 0-10 V: no
Dimming 1-10 V: no
DALI dimming: yes
DMX dimming: no
Manufacturer-specific dimming: no
DSI dimming: no
Dimming potentiometer (integrated in device): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: yes
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Light distributor: other
Beam angle: wide beam 41-80°
Energy efficiency class of the permanently installed lamp: other
Rated service life L70/B50 at 25 °C: 70000 h
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Max. System power: 26 W
Power factor: 0.95
Type of wiring: suitable for through wiring
Number of poles: 5
Connection type: Plug-in terminal

Characteristics

Energy efficiency class of the permanently installed light sourceOther
HAB7651 Act HE PWW 40ETDD8 L150 01
ManufacturerTrilux
HAN9002072995
GTIN4018242574575
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Beam angleWide beam 41-80°
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-14000lm
Operating deviceElectronic transformer
Width205 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimYes
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000 to 6500 K
Color rendering index CRI80-89
VersionOther
Suitable for number of lamps1
Suitable for emergency lightingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth116 mm
Power factor0.95
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorOther
Light distributionSymmetrical
Length1475 mm
Max. system performance26W
With operating deviceYes
With light sourceYes
Nominal voltage220 to 240 V
Without dimming functionNo
Number of poles5
ReflectorWithout
IP protection)IP20
Protection classI
Voltage typeAC
Housing materialSteel
