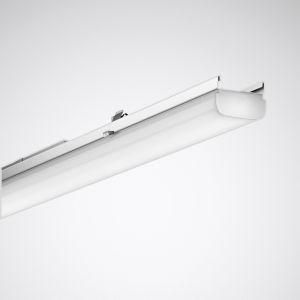

Trilux 9002112578 7651IP HE DL 120-830ET L150 01 LED device carrier

LED device carrier for E-Line light strip system 7651 Fix. Designed for use in applications with high requirements for temperature resistance, luminaire efficiency and service life of the light strip. Device carriers with a length of 1474 mm are suitable for setting up new systems as well as for renovation applications in existing systems with E-Line T5N/LED light strip systems. Complies with DIN 10500. The lights are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. For combination with support profiles E-Line Fix 0765.... Compatible with support profiles E-Line T5N/LED 07650.... Combination with accessories 07650... (support profile, IP headpiece) suitable for use in fire-hazardous premises in accordance with DIN EN 60598- 2-24 (D identification). Fastened to the support profile using stainless steel snap fasteners that can be operated without tools. Proper assembly of the device carrier with the support profile is confirmed by a clicking sound. The transparent assembly elements made of UV-stabilized polycarbonate can be removed after successful assembly, thus ensuring protection against theft and dismantling. When combining device carriers with different beam characteristics or light output within a light strip application, the uniform design dimensions of the variants create a harmonious and uniform appearance of the lighting system. Characteristics of the luminous intensity distribution: lambertian. Half-value angle C0 = 121°, C90 = 102°, main beam angle C0 = 0°. The optical system consists of a translucent PMMA cover with a high degree of transmission. With a slight indirect component for decorative surface brightening (13%). Insect-proof lamp compartment due to protection class IP50. Recommended installation height: 2.4 - 4 m. With two LED modules (2 x 96 LEDs). Light generation free of infrared (IR) and ultraviolet (UV) components. The luminous flux of the device carrier is electronically parameterized in the production process according to customer requirements. Parameterized rated luminous flux of the device carrier: 12,000 lm. Rated power 81 watts, luminous efficacy of the device carrier 148 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) 80, color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 25 °C) = 70,000 h. Device carrier made of sheet steel, coated white. Length of the device carrier 1,474 mm. Insect-proof lamp compartment due to protection class IP50. Permissible ambient temperature (ta) 25 °C. Protection type (DIN EN 60529): IP50 Protection class (EN 61140): I. Shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Automatic electrical connection through plug contacts with phase selection. The phase selection is done without tools. With mechanical protection against incorrect assembly. With electronic control gear, switchable. The luminaire meets the basic requirements of the applicable EU directives and the product safety law and bears the CE mark. A special online tool is available for the simple and quick planning and configuration process of the application. The resource-optimized packaging concept of the light strip components makes assembly easier and protects the environment.
