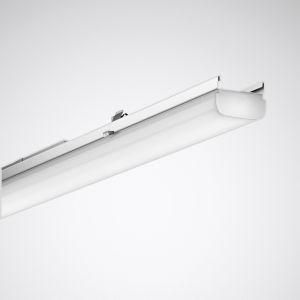

Trilux 9002112721 7651IP Act HE DL 80ETDD8 L225 01p8 LED device carrier

LED device carrier for E-Line light strip system 7651 Fix. Device carrier with Activ equipment for controlling the light color using a separate control unit. Designed for use in application areas with high requirements for temperature resistance, luminaire efficiency and service life of the light strip. Complies with DIN 10500. The luminaires are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. For combination with support profiles E-Line Fix 0765.... Combination with accessory 07650... (support profile, IP head piece) suitable for use in fire-hazardous premises in accordance with DIN EN 60598- 2-24 (D identification). Fastened to the support profile using stainless steel snap fasteners that can be operated without tools. Proper assembly of the device carrier with the support profile is confirmed by a clicking sound. The transparent mounting elements made of UV-stabilized polycarbonate can be removed after successful installation, thus ensuring protection against theft and dismantling. When combining device carriers with different beam characteristics or light output within a light strip application, the uniform design dimensions of the variants create a harmonious and uniform appearance of the lighting system. Characteristics of the luminous intensity distribution: lambertian. Half-value angle C0 = 121°, C90 = 102°, main beam angle C0 = 0°. The optical system consists of a translucent PMMA cover with a high degree of transmission. With a slight indirect component for decorative surface brightening (13%). Insect-proof lamp compartment due to protection class IP50. Recommended installation height: 2.4 - 4 m. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8-capable control unit. The following information on the luminaire luminous flux and the system connection power refer to the operation of this luminaire with dynamically adjustable light color (HCL) in the warm white light color operating mode (2700 K). With three LED modules (3 x 96 LEDs). Light generation free of infrared (IR) and ultraviolet (UV) components. The luminaire luminous flux of the device carrier is electronically parameterized in the manufacturing process according to customer requirements. Parameterized rated luminous flux of the device carrier: 8,000 lm. Rated power 57 watts, luminaire luminous efficacy 140 lm/W. Light color Active, correlated color temperature (CCT) 2700 K, general color rendering index (CRI) 80, color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 35 °C) = 70,000 h. Device carrier made of sheet steel, coated white. Length of the device carrier 2,211 mm. Insect-proof lamp compartment due to protection class IP50. Permissible ambient temperature (ta) 35 °C. Protection class (DIN EN 60529): IP50 Protection class (EN 61140): I. Shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Automatic electrical connection through plug contacts with phase selection. Phase selection is done without tools. With mechanical protection against incorrect assembly. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8-capable control device. Control gear according to DALI-2 standard (EN 62386). The luminaire meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. A special online tool is available for the simple and quick planning and configuration process of the application. The resource-optimized packaging concept of the light strip components makes assembly easier and protects the environment.
