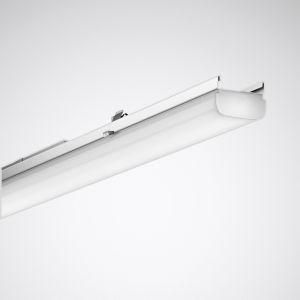

Trilux 9002112855 7651IP HE+DL 120-830ETDD L225 01 LED device carrier

LED device carrier for E-Line light strip system 7651 Fix. Designed for use in areas of application in which light strips must meet particularly high requirements for temperature resistance, luminaire efficiency and service life. Complies with DIN 10500. The luminaires are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. For combination with support profiles E-Line Fix 0765.... Combination with accessory 07650... (support profile, IP head piece) suitable for use in fire-hazardous premises in accordance with DIN EN 60598- 2-24 (D identification). Fastened to the support profile using stainless steel snap fasteners that can be operated without tools. Proper assembly of the device carrier with the support profile is confirmed by a snapping sound. The transparent assembly elements made of UV-stabilized polycarbonate can be removed after successful assembly, thus ensuring protection against theft and dismantling. When combining device carriers with different beam characteristics or light output within a light strip application, the uniform design dimensions of the variants create a harmonious and uniform appearance of the lighting system. Characteristics of the luminous intensity distribution: lambertian. Half-value angle C0 = 121°, C90 = 102°, main beam angle C0 = 0°. The optical system consists of a translucent PMMA cover with a high degree of transmission. With a slight indirect component for decorative surface brightening (13%). Insect-proof lamp compartment due to protection class IP50. Recommended installation height: 2.4 - 4 m. With three LED modules (3 x 96 LEDs). Light generation free of infrared (IR) and ultraviolet (UV) components. The luminous flux of the device carrier is electronically parameterized in the production process according to customer requirements. Parameterized rated luminous flux of the device carrier: 12,000 lm. Rated power 76 watts, luminaire luminous efficacy 157 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) 80, color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 35 °C) = 90,000 h. Device carrier made of sheet steel, coated white. Length of device carrier 2,211 mm. Insect-proof lamp compartment due to protection class IP50. Permissible ambient temperature (ta) 35 °C. Protection class (DIN EN 60529): IP50 Protection class (EN 61140): I. Impact resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Automatic electrical connection through plug contacts with phase selection. The phase is selected without tools. With mechanical protection against incorrect installation. With electronic control gear, digitally dimmable (DALI). The luminaire is monitoring ready (MOR), provides luminaire data for monitoring or predictive maintenance and is therefore compatible with TRILUX Digital Services (Energy Monitoring and Light Monitoring). The luminaire meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. A special online tool is available for the simple and quick planning and configuration process of the application. The resource-optimized packaging concept of the light strip components makes assembly easier and protects the environment.
