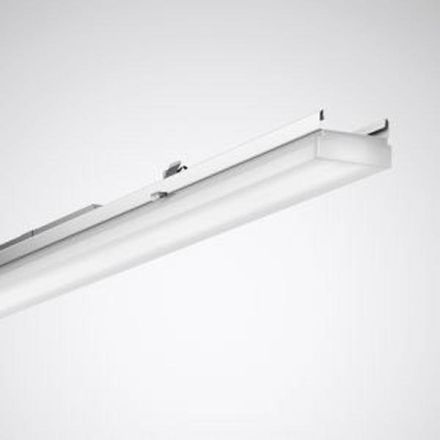

Trilux 9002113322 7651IP HE DSL 80-865ETDD L150 01p8 LED device carrier

LED device carrier for E-Line light strip system 7651 Fix. Designed for use in applications with high requirements for temperature resistance, luminaire efficiency and service life of the light strip. Device carriers with a length of 1474 mm are suitable for setting up new systems as well as for renovation applications in existing systems with E-Line T5N/LED light strip systems. Complies with DIN 10500. The lights are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. For combination with support profiles E-Line Fix 0765.... Compatible with support profiles E-Line T5N/LED 07650.... Combination with accessories 07650... (support profile, IP headpiece) suitable for use in fire-hazardous premises in accordance with DIN EN 60598- 2-24 (D identification). Fastened to the support profile using stainless steel snap fasteners that can be operated without tools. Proper assembly of the device carrier with the support profile is confirmed by a clicking sound. The transparent assembly elements made of UV-stabilized polycarbonate can be removed after successful assembly, thus ensuring protection against theft and dismantling. When combining device carriers with different beam characteristics or light output within a light strip application, the uniform design dimensions of the variants create a harmonious and uniform appearance of the lighting system. Characteristics of the luminous intensity distribution: slim-lambertian. Half-value angle C0 = 108°, C90 = 102°, main beam angle C0 = 0°. The optical system consists of a translucent, very flat PMMA cover with a high degree of transmission, installation height 26 mm. With a slight indirect component for decorative surface brightening (13%). Insect-proof lamp compartment due to protection class IP50. Recommended installation height: 2.5 - 4 m. With two LED modules (2 x 96 LEDs). Light generation free of infrared (IR) and ultraviolet (UV) components. The luminaire luminous flux of the device carrier is electronically parameterized in the production process according to customer requirements. Parameterized rated luminous flux of the device carrier: 8,400 lm. Rated power 50 watts, luminaire luminous efficacy 168 lm/W. Light color daylight white, correlated color temperature (CCT) 6500 K, general color rendering index (CRI) 80, color locus tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 35 °C) = 70,000 h. Device carrier made of sheet steel, coated white. Length of the device carrier 1,474 mm. Insect-proof lamp compartment due to protection class IP50. Permissible ambient temperature (ta) 35 °C. Protection type (DIN EN 60529): IP50 Protection class (EN 61140): I. Shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Automatic electrical connection through plug contacts with phase selection. The phase selection is done without tools. With mechanical protection against incorrect assembly. With electronic control gear, digitally dimmable (DALI). The luminaire is monitoring ready (MOR), provides luminaire data for monitoring or predictive maintenance and is therefore compatible with TRILUX Digital Services (Energy Monitoring and Light Monitoring). The luminaire meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. A special online tool is available for the simple and quick planning and configuration process of the application. The resource-optimized packaging concept of the light strip components makes assembly easier and protects the environment.
