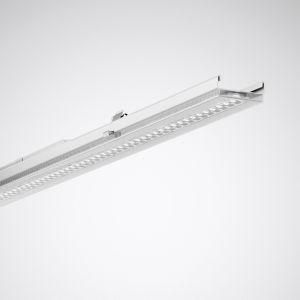

Trilux 9002113809 7651IP LN 80-830ET L225 01p10 LED device carrier

LED device carrier for E-Line light strip system 7651 Fix. Designed for use in areas of application with high technical requirements for the light strip while maintaining economic efficiency. Complies with DIN 10500. The lights are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. For combination with support profiles E-Line Fix 0765.... Combination with accessory 07650... (support profile, IP head piece) suitable for use in fire-hazardous premises in accordance with DIN EN 60598- 2-24 (D identification). Fastened to the support profile using stainless steel snap fasteners that can be operated without tools. Proper installation of the device carrier with the support profile is confirmed by a clicking sound. The transparent mounting elements made of UV-stabilized polycarbonate can be removed after successful installation, thus ensuring protection against theft and dismantling. When combining device carriers with different beam characteristics or light output within a light strip application, the uniform design dimensions of the variants create a harmonious and uniform appearance of the lighting system. Characteristics of the light intensity distribution: narrow, half-angle C0: 74°, half-angle C90: 100°, main beam angle: 0°. The optical system consists of a PMMA lens optic with three coordinated, light-technically effective areas and thus ensures uniform light distribution and homogeneous illumination. The flat surface makes cleaning the luminaire easier. In use, it is particularly suitable for area illumination. The light distribution character of the device carrier is determined exclusively by the technical design of the lens optic and does not require any other light-directing components or accessories. Recommended installation height: 8-12 m. With three LED modules (3 x 96 LEDs). Light generation free of infrared (IR) and ultraviolet (UV) components. The luminaire luminous flux of the device carrier is electronically parameterized in the production process according to customer requirements. Parameterized rated luminous flux of the device carrier: 8,000 lm. Rated power 46 watts, luminaire luminous efficacy 174 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) 80, color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 35 °C) = 50,000 h. Device carrier made of sheet steel, coated white. Length of the device carrier 2,211 mm. Insect-proof lamp compartment due to protection class IP50. Permissible ambient temperature (ta) 35 °C. Protection type (DIN EN 60529): IP50 Protection class (EN 61140): I. Shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Automatic electrical connection through plug contacts with phase selection. The phase selection is done without tools. With mechanical protection against incorrect assembly. With electronic control gear, switchable. The luminaire meets the basic requirements of the applicable EU directives and the product safety law and bears the CE mark. A special online tool is available for the simple and quick planning and configuration process of the application. The resource-optimized packaging concept of the light strip components makes assembly easier and protects the environment.
