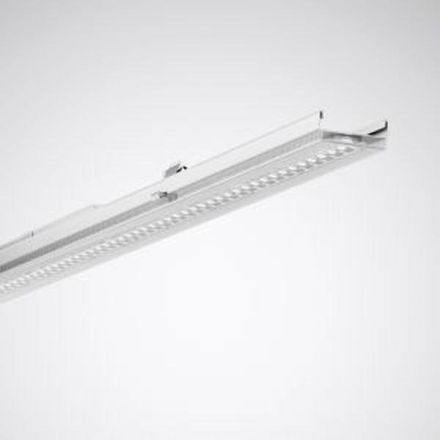

Trilux 9002115586 7651IP HE LW19 40-865ET L150 01 LED device carrier

LED device carrier for E-Line light strip system 7651 Fix. Designed for use in applications with high requirements for temperature resistance, luminaire efficiency and service life of the light strip. Device carriers with a length of 1474 mm are suitable for setting up new systems as well as for renovation applications in existing systems with E-Line T5N/LED light strip systems. Complies with DIN 10500. The lights are suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. For combination with support profiles E-Line Fix 0765.... Compatible with support profiles E-Line T5N/LED 07650.... Combination with accessories 07650... (support profile, IP headpiece) suitable for use in fire-hazardous premises in accordance with DIN EN 60598- 2-24 (D identification). Fastened to the support profile using stainless steel snap fasteners that can be operated without tools. Proper assembly of the device carrier with the support profile is confirmed by a clicking sound. The transparent assembly elements made of UV-stabilized polycarbonate can be removed after successful assembly, thus ensuring protection against theft and dismantling. When combining device carriers with different beam characteristics or light output within a light strip application, the uniform design dimensions of the variants create a harmonious and uniform appearance of the lighting system. Characteristics of the light intensity distribution: wide, half-value angle C0: 84°, half-value angle C90: 86°, main beam angle: +/- 28°. The optical system consists of a PMMA lens optic with three coordinated, photometrically effective areas, thus ensuring uniform light distribution and homogeneous illumination. The flat surface makes cleaning the luminaire easier. The light distribution characteristics of the device carrier are determined exclusively by the technical design of the lens optics and do not require any other light-directing components or accessories. Recommended installation height: 3 - 6 m. Screen-compatible in accordance with EN 12464-1 due to limited luminance L 3000 cd/m² for beam angles above 65° all around. With two LED modules (2 x 96 LEDs). Light generation free of infrared (IR) and ultraviolet (UV) components. The luminous flux of the device carrier is electronically parameterized in the manufacturing process according to customer requirements. Parameterized rated luminous flux of the device carrier: 4,200 lm. Rated power 22 watts, luminous efficacy of the luminaire 191 lm/W. Light color daylight white, correlated color temperature (CCT) 6500 K, general color rendering index (CRI) 80, color tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 50 °C) = 70,000 h. Device carrier made of sheet steel, coated white. Length of device carrier 1,474 mm. Insect-proof lamp compartment due to protection class IP50. Permissible ambient temperature (ta) 50 °C. Protection class (DIN EN 60529): IP50 Protection class (EN 61140): I. Impact resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Automatic electrical connection through plug contacts with phase selection. The phase selection is done without tools. With mechanical protection against incorrect assembly. With electronic control gear, switchable. The luminaire meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. A special online tool is available for the simple and quick planning and configuration process of the application. The resource-optimized packaging concept of the light strip components makes assembly easier and protects the environment.
