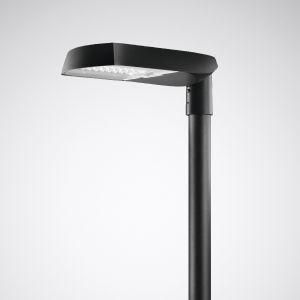

Trilux 6340540 Cuvia 60-AB6L/6800-740 8G1S ET LED mast light, anthracite

Top-mounted or side-mounted luminaire with flat cover plate. With intelligent label for quickly accessing luminaire information using a QR code. Top-mounted and side-mounted luminaire for mast top Ø 76 mm. Tilt angle for top-mounted installation 0°, 10°, for side-mounted installation -10°, 0° adjustable. Also suitable for use with masts Ø 42, 48 and 60 mm using reducers that must be ordered separately. The mast is attached using two stainless steel fastening screws in accordance with EN 60598-2-3. Matching mast on request. In MLT version (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. With PMMA cover plate, clear. With asymmetrical wide beam light distribution. For lighting streets according to M5 and M6 lighting classes with a street width to light point height ratio of 0.4 to 0.8. The subsequent installation of a rear/side shield is possible as an accessory that must be ordered separately. Other beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Rated luminous flux 6800 lm, rated power 51.00 W, luminaire luminous efficacy 133 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with ecodesign requirements (Regulation (EU) 2019/2020). Versions with 3-stage switch for setting different luminous fluxes on request. Luminaire body made of die-cast aluminum. Luminaire housing with highly weather-resistant powder coating. Color anthracite (DB 703). Coating suitable for marine weather on request. With sulfur-free seals. The modular luminaire consists of the base module and the lighting module. The mechanical and electrical connection of the modules is done without tools. Protection class (EN 61140): II, protection type (DIN EN 60529): IP66, shock resistance according to IEC 62262: IK09. Mast available on request. Wind attack area fw 0.050 m2. Weight: 7.8 kg. M20 screw connection as strain relief for cable diameters 6 mm to 12 mm. With connected, 8000 mm long supply cable. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge voltage resistance 6 kV. Parameterizable ballast with constant luminous flux (CLO). Connected load at end of service life: 54.00 W. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
