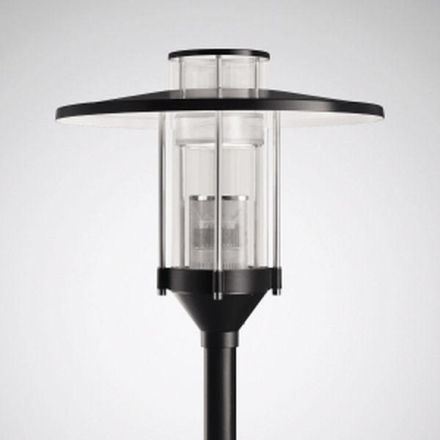

Decorative skylight lantern for mast top mounting. For mast top Ø 76 mm. Also suitable for mounting on masts with top Ø 60 mm using reducers that must be ordered separately. Optical system made of high-gloss, anodized aluminum. With rotationally symmetrical, wide-beam light distribution. Rated luminous flux 1800 lm, rated power 21.00 W, luminaire luminous efficacy 85 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. Luminaire body made of die-cast aluminum, luminaire roof made of corrosion-resistant aluminum, highly weather-resistant powder-coated. Color of the luminaire body and luminaire roof outside jet black, similar to RAL 9005. The luminaire roof inside is powder-coated white. Coating suitable for marine weather on request. Locking cylinder made of highly impact-resistant PMMA, clear. Weight: 10.8 kg. The luminaire cover can be pushed up into a self-locking service position. Protection class (EN 61140): II, protection type (DIN EN 60529): IP23, protection type of lamp compartment: IP65, shock resistance level according to IEC 62262: IK04. With electronic control gear, switchable. Electrical block with all electrical components can be replaced without tools. Surge voltage resistance 6 kV. Configurable ballast with constant luminous flux (CLO). Connected load at the end of the service life: 25.00 W. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing center.
