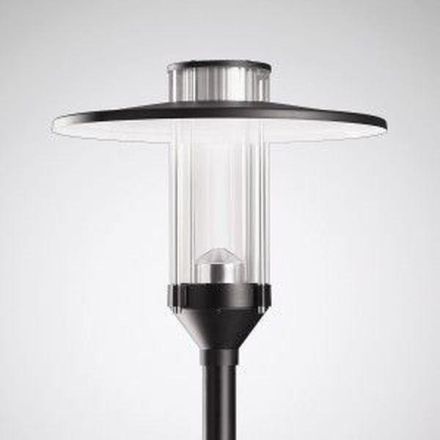

Trilux 6714140 9821 AB2L LR/1800 740 3G1S ET LED mast light, silver

Decorative LED skylight lantern for mast mounting. With intelligent label for quickly calling up luminaire information using a QR code. With power reduction via control phase. Switching off a control phase sets the luminaire luminous flux to 50%. For mast spigot Ø 76 mm. Also suitable for mounting on masts with a spigot Ø 60 mm using reducers that must be ordered separately. Matching mast on request. Optical system designed using multi-lens technology (MLT). Luminaire optics consisting of highly efficient, UV and temperature-resistant lens systems. With asymmetrical wide-beam light distribution. The subsequent installation of a rear / side shield is possible as an accessory that must be ordered separately. LED system consisting of 3 LED modules. Rated luminous flux 1800 lm, rated power 13.00 W, luminaire luminous efficacy 138 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Versions with 3-stage switch for setting different luminous fluxes on request. Luminaire body made of die-cast aluminum, luminaire roof made of corrosion-resistant aluminum, highly weather-resistant powder-coated. Color black (RAL 9005). Coating suitable for marine weather on request. Luminaire roof powder-coated white on the inside. End cylinder made of highly impact-resistant PMMA, clear. Luminaire cover can be pushed up into self-locking service position. Protection class (EN 61140): II, protection type (DIN EN 60529): IP23, protection class lamp compartment: IP65, shock resistance level according to IEC 62262: IK04. Mast available on request. Wind attack area fw 0.470 m2. Weight: 11.0 kg. With electronic control gear, switchable. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). With connected, 6000 mm long supply cable. With insulated support point for the earth conductor. Electroblock with all electrical components can be replaced without tools. Surge voltage resistance 6 kV. Parameterizable ballast with constant luminous flux (CLO). Connected load at end of service life: 14.00 W. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
