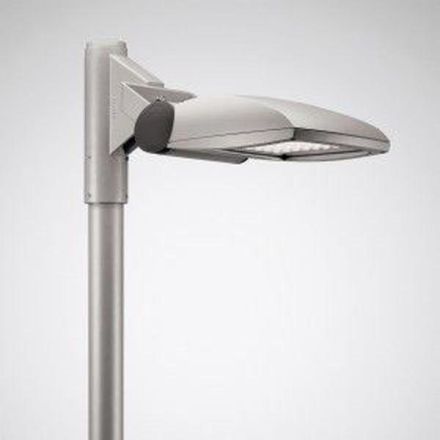

Trilux 6903240 LnStar 40 RB2L 4200 740 6G1S ET LED mast luminaire

LED floodlight for area lighting and spotlighting. For mounting on horizontal surfaces, ceilings and, with accessories, also on masts. Mounting bracket made of aluminum. To attach the luminaire to masts in single or multiple arrangements, accessories (crossbars) must be ordered separately depending on the application. In MLT design (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. With rotationally symmetrical, wide-beam light distribution. With 6 LED modules. Rated luminous flux 4200 lm, rated power 27.00 W, luminaire luminous efficacy 155 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color tolerance (initial MacAdam) 5 SDCM. Other LED light colors available on request. Average rated service life L80(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Spotlight housing made of die-cast aluminum. Flat cover panel made of heat-treated single-pane safety glass sealed in the die-cast frame, hinged and attached to the spotlight housing with stainless steel screws. Color white aluminum, similar to RAL 9006. (RAL 9006). Other color variants according to RAL or DB color code possible. Dimensions (L x W): 523 mm x 290 mm, luminaire height 140 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, impact resistance degree according to IEC 62262: IK08. Wind attack area fw . Weight: 7. 0 kg. With electronic control gear, switchable. The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge voltage resistance 4 kV. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
