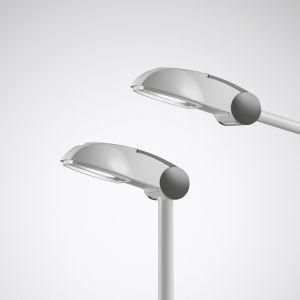

Trilux 7194140 9701SG-AB2L/3200 740 6G2 ET LED mast luminaire

LED top-mounted and extension light. With intelligent label for quick access to light information using a QR code. Top-mounted and extension light for mast spigot Ø 76 mm. Tilt angle adjustable from 0°...25° for top-mounted installation, from 0°...15° for extension installation. The mast is attached using two stainless steel fastening screws in accordance with EN 60598-2-3. Also suitable for mounting on masts with spigot Ø 42, 48 and 60 mm using reducers that must be ordered separately. Matching mast on request. Optical system designed using multi-lens technology (MLT). Luminaire optics consisting of highly efficient, UV and temperature-resistant lens systems. With asymmetrical, wide beam light distribution. For lighting streets according to P lighting classes. Additional beam characteristics are available for flexible adaptation to customer-specific lighting tasks. The subsequent installation of a rear / side shield is possible as an accessory to be ordered separately. Rated luminous flux 3200 lm, luminaire luminous efficacy 139 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Versions with 3-stage switch for setting different luminous fluxes on request. Luminaire body made of die-cast aluminum. Luminaire two-tone, light gray and anthracite gray powder-coated, highly weatherproof (RAL 7035 / RAL 7016). Coating suitable for marine weather on request. LED module consisting of a die-cast aluminum housing with integrated LED and optical lens systems. With sealed, clear cover made of PMMA. The LED module and the mounted control gear form an easily replaceable functional unit. The luminaire housing can be opened without tools using lever locks. Protection class (EN 61140): II, protection type (DIN EN 60529): IP66, impact resistance level according to IEC 62262: IK09. Mast available on request. Wind attack area fw 0.090 m2. Weight: 9.5 kg. With mounted connecting cable. Length of connecting cable 8 m. M20 screw connection as strain relief for cable diameters 6 mm to 12 mm. With electronic control gear, switchable. Control gear in accordance with DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Parameterizable ballast with constant luminous flux (CLO). Connected load at end of service life: 24.00 W. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
