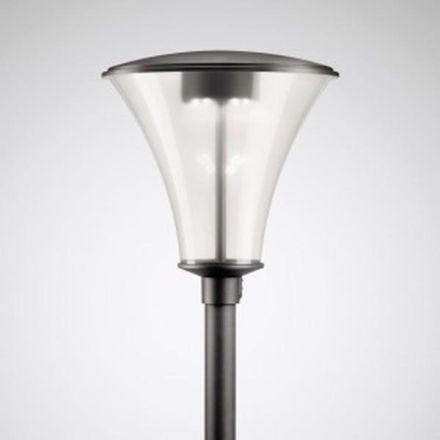

Trilux 7314240 LTX KT-RB6L-LR/3800-730 4G1 ET LED mast luminaire

Decorative mast-top luminaire in cone shape. With intelligent label for quickly calling up luminaire information using a QR code. With power reduction via control phase. Switching off a control phase sets the luminaire luminous flux to 50%. Matching mast on request. In MLT design (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. With rotationally symmetrical, wide-beam light distribution. Other beam characteristics are available for flexible adaptation to customer-specific lighting tasks. The subsequent installation of a rear / side shield is possible as an accessory to be ordered separately. Rated luminous flux 3800 lm, rated power 32.00 W, luminaire luminous efficacy 118 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 70. Color tolerance (initial MacAdam) 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Luminaire roofs made of corrosion-resistant aluminum. Color anthracite, similar to DB703. Coating suitable for marine weather on request. Cover pan made of highly impact-resistant PMMA, translucent. Protection class (EN 61140): II, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK07. Mast available on request. Wind attack area fw 0, 190 m2. Weight: 7.6 kg. With mounted connection cable 6 m. With electronic control gear, switchable. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Parameterizable ballast with constant luminous flux (CLO). Connected load at end of service life: 34.00 W. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
