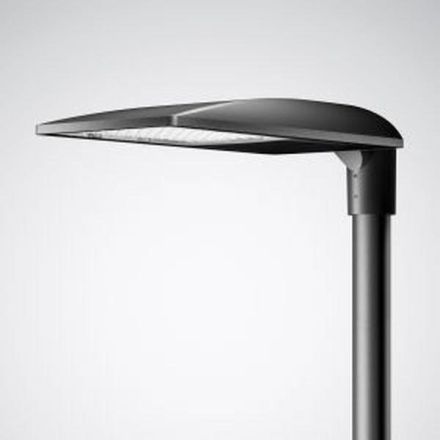

Trilux 7523040 Jovie 70-AB7L-ML-LR/165-240-740 24G1 ET LED mast light, anthracite

Versatile outdoor mast light in a reduced, international design language and flat construction. With intelligent label for quickly calling up luminaire information using a QR code. With power reduction via control phase. Switching off a control phase sets the luminaire's luminous flux to 50%. In combination with the mast attachment, which must be ordered separately, it can be used as a mast-top luminaire (spike size Ø 76 mm / Ø 60 mm, Jovie Z MB D...) or mast-side luminaire (spike size Ø 42 mm / Ø 60 mm, Jovie AZ MB D...). The inclination of the luminaire head can be adjusted in 4 ways. (0° / 5° / 10° / 15°). In MLT version (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. With asymmetrical, wide beam light distribution. For lighting streets according to M5 and M6 lighting classes with a street width to light point height ratio of 0.4 to 0.8. Additional beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Adjustable luminaire luminous flux (NFC). LED system consisting of 8 MLT LED modules with 4 LEDs each. Luminaire with adjustable luminaire luminous flux, reduction of up to 50%, using an app and NFC (Near Field Communication). The upper limit of the luminaire is set when delivered. Rated luminous flux 24000 lm - 24000 lm, rated power 188.00 W - 197.00 W, luminaire luminous efficacy 127 lm/W - 121 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color tolerance (initial MacAdam) 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Color anthracite (DB 703). Luminaire housing with highly weather-resistant powder coating. Coating suitable for marine weather on request. With PMMA cover plate, printed. Cover plate can be individually printed on customer request. Visible label protected against the effects of weather behind the cover plate on request. Protection class (EN 61140): II, protection type (DIN EN 60529): IP66, shock resistance according to IEC 62262: IK09. Mast available on request. Wind attack area fw 0.220 m2. Weight: 11.5 kg. The luminaire is connected without opening the luminaire body using the connecting cable that runs outwards. Length of the connecting cable: 12.0 m. With electronic control gear, switchable. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge voltage resistance 10 kV. Configurable ballast with constant luminous flux (CLO). Connected load at end of service life: 197.00 W. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
