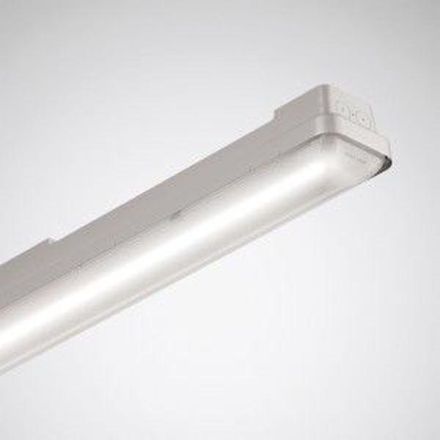

Trilux 7117940 OleveonF 1.2 L 2300 865 ET LED damp-proof luminaire

Trilux 7117940 OleveonF 1.2 L 2300 865 ET LED damp-proof luminaire

In stock

SKU: 852355

Price on request

€84.70

€0

Overview

LED surface-mounted luminaire IP66 for damp rooms with PC luminaire body and PMMA diffuser. Advantageous when there are increased requirements for mechanical stability. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. For ceiling, wall and suspended installation. Ceiling installation using the included stainless steel mounting clip. Suspended installation possible using optional accessories. Cover made of opal, translucent PMMA with internal prism structure. With Lambertian light intensity distribution. Glare rating according to UGR classification (EN 12464-1) < 25. Rated luminous flux 2700 lm, rated power 19.00 W, luminaire luminous efficacy 142 lm/W. Light color daylight white, correlated color temperature (CCT) 6500 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of PC. Luminaire body color light gray (RAL 7035). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. Dimensions (L x W): 1257 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): -20 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 2.3 kg. With 3-pin connection terminal up to 2.5 mm2. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	19 W
Rated luminous flux according to IEC 62722-2-1:	2700 lm
Suitable for number of lamps:	1
Length:	1257 mm
Width:	102 mm
Height/depth:	91 mm
Protection rating (IP):	IP66
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	230 V
Housing color:	grey
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Suitable for wall mounting:	yes
Energy efficiency class of the permanently installed light source:	other
Voltage type:	AC/DC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 35 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Transparent plastic
Light distributor:	Diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	electronic transformer
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	yes
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	142 lm/W
Power factor:	0.9
Type of Wiring:	suitable for through wiring
Number of poles:	3

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HABOleveonF 1.2 L 2300 865 ET

Manufacturer

HAN7117940

GTIN4018242403752

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated luminous flux according to IEC 62722-2-12700lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Width102 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorGray

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth91 mm

Power factor0.9

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy142lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1257 mm

Max. system performance19 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK03

IP protection)IP66

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialPlastic transparent

Housing materialPlastic
