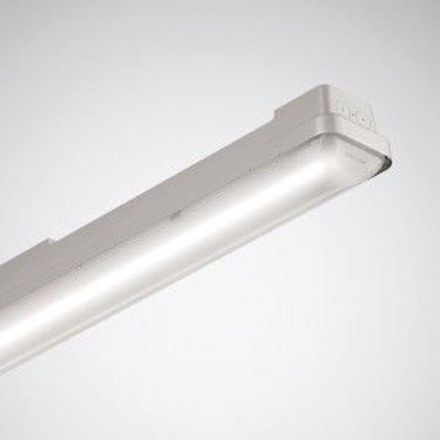

Trilux 7127740 OleveonF 1.5 L 6000 840 ET +HFS LED damp-proof luminaire, grey

LED damp-proof surface-mounted luminaire IP 66. Advantageous when there are increased requirements for mechanical stability. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D identification). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. For ceiling, wall and suspended installation. Ceiling mounting using the enclosed stainless steel mounting clip. Suspended installation possible using optional accessories. Cover made of opal, translucent PMMA with internal prism structure. With Lambertian light intensity distribution. Glare rating according to UGR classification (EN 12464-1) < 25. Rated luminous flux 6200 lm, rated power 46.00 W, luminaire luminous efficacy 134 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of PC. Luminaire body color light gray (RAL 7035). With clipless locking technology for easy assembly of the diffuser cover and luminaire body in accordance with the protection class after connection. Dimensions (L x W): 1552 mm x 102 mm, lamp height 91 mm. Permissible ambient temperature (ta): -20 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 2.7 kg. With 3-pin connection terminal up to 2.5 mm2. With electronic control gear, switchable. With integrated HF motion sensor. Shape of the detection area is elliptical, length of the detection area up to 12 meters, width of the detection area up to 8 m. The functional parameters signal strength, hold time and, in conjunction with lamps of the ETDD switching type, light value and dimming level can be set using the IR remote control available as an accessory. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
