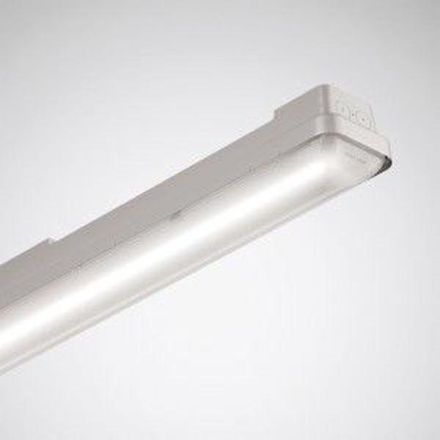

Trilux 7128151 OleveonF 1.5 L 6000 865 ETDD PC LED damp-proof luminaire, grey

LED surface-mounted luminaire IP66 for damp rooms with PC luminaire body and PC diffuser. Advantageous for increased requirements for mechanical stability. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. With clipless locking technology for easy installation of diffuser cover and luminaire body in accordance with protection class after connection. For ceiling, wall and suspended installation. Ceiling mounting using the enclosed stainless steel mounting clip. Suspended installation possible using optional accessories. Cover made of opal, translucent PC with internal prism structure. With Lambertian light intensity distribution. Glare rating according to UGR classification (EN 12464-1) < 25. Rated luminous flux 6100 lm, rated power 44.00 W, luminaire luminous efficacy 138 lm/W. Light color daylight white, correlated color temperature (CCT) 6500 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of PC. Luminaire body color light gray (RAL 7035). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. Dimensions (L x W): 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): -20 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 2.5 kg. With 5-pin connection terminal up to 2.5 mm2. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
