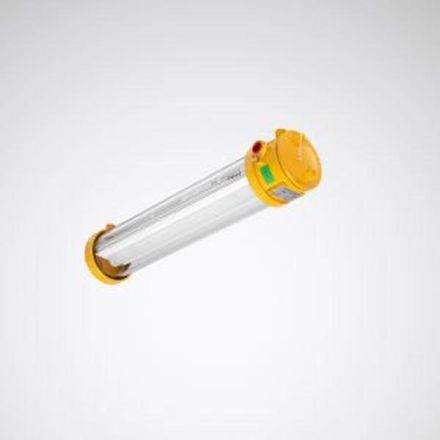

Trilux 7668540 Kratex NS HE 1.2 40-840 ET PC EB1 LED damp-proof luminaire

Explosion-proof, highly efficient LED damp-proof luminaire with polycarbonate tube. In emergency light version with single battery system, nominal operating time 1 hour. For use in areas at risk from an explosive atmosphere. Suitable for indoor and outdoor use, particularly areas with high ambient temperatures < 40°C. ATEX marking II 2D EX TB IIIC T85 DB, -, II G EX DB IIC T6 GB, -. Mounting accessories available as accessories to be ordered separately. Also suitable for suspended mounting using accessories to be ordered separately. With Lambertian light distribution. Rated luminous flux 4900 lm, rated power 44.00 W, luminous efficacy of the luminaire 111 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 55 °C) = 50,000 h. Luminaire body made of 5 mm thick, UV-resistant polycarbonate, end caps made of an aluminum alloy. Color of the end caps signal yellow (RAL 1003). Internal device carrier made of sheet steel, powder-coated white. Seals made of NBR (nitrile butadiene rubber). Dimensions (L x W): 1360 mm x 157 mm, luminaire height 197 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK10, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Permissible ambient temperature (ta): -20 °C - +40 °C. Weight: 10.2 kg. Connection terminal, plug-in (3 x 2.5 mm2). With 2 cable entry openings with 3/4 inch receptacle (NPT) for EX cable glands. EX cable glands not included in delivery. With electronic control gear, switchable. The luminaire is suitable for operation on a 230 V direct current network (DC). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
