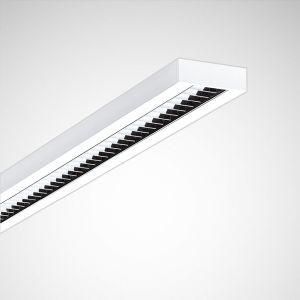

Trilux 6199051 5041RPX-L 3300-840 ETDD LED louvre surface-mounted luminaire, white

LED surface-mounted luminaire for individual or strip light applications. For mounting on ceilings and overhangs indoors. With parabolic mirror louvre, high-gloss. With reflection-enhancing coated silver surface. Reflection factor 98%, proportion of scattered reflections < 3%. With symmetrical light distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for computer workstations in accordance with EN 12464-1 louvre fastening and automatic electrical protective measure through sliding contact locks. Louvre can be folded down and removed on both sides without tools. LED systems covered with an opal, impact-resistant PMMA diffuser for uniform illumination of the light emission surface. Rated luminous flux 3400 lm, rated power 28.00 W, luminous efficacy of the luminaire 121 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1193 mm x 160 mm, luminaire height 53 mm. Head piece installation dimension for end light or individual light application 11 mm per head piece. Please order head pieces for individual lights or light strip ends separately. Rectangular design with 40 mm wide edge on the long side. Luminaire body with integrated coupling bars for precisely aligned light strips with continuous grids. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.8 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
