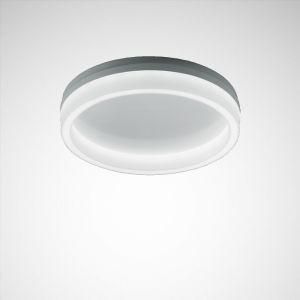

Trilux 6333740 PolaronIQ WD2D LED2000-840 ET LED wall / ceiling light, white

In stock
SKU: 848877
€717.08
Into a basketIn the basketGo

Overview

Exclusive LED wall and ceiling light with a ring-shaped light element. With direct light distribution. Surface-mounted light for ceiling or wall mounting. Can also be used as a recessed or semi-recessed light in conjunction with the appropriate accessories. Circular PMMA cover with a pronounced flat contour and finely structured surface. With direct light distribution. Optional recessed housings become the lighting-effective part of the lights as additional, enclosing secondary reflectors. Rated luminous flux 2000 lm, rated power 17.00 W, luminous efficacy of the light 117 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80 (tq 25 °C) = 70,000 h, average rated service life L85 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Luminaire diameter Ø 403 mm, luminaire height 68 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP40, shock resistance according to IEC 62262: IK05, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.1 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

>no
Property Value
Max. System power: 17 W
Rated luminous flux according to IEC 62722-2-1: 2000 lm
Suitable for number of lamps: 1
Height/depth: 68 mm
Protection rating (IP): IP40
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 230 V
Housing color: white
Housing material: aluminum
Color temperature: 4000 K
Impact resistance: IK05
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Suitable for wall mounting: yes
Outer diameter: 403 mm
Energy efficiency class of the built-in light source: other
Voltage type: AC
With motion detector: no
Beam angle: free beam/diffuse
With light source: yes
Light source: LED replaceable
Rated ambient temperature according to IEC62722-2-1: -20 to 25 °C
Socket: other
Connection type: Plug-in terminal
With operating device: yes
Cover material: Plastic, structured
Light distributor: Diffuser lens/optics/panel
Without dimming function: yes
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: electronic transformer
Suitable for recessed mounting: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for Pendant suspension: no
Suitable for surface mounting: yes
Suitable for emergency lighting: no
Design of the grid: without
Covering of the lamp with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS:
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on operating device: no
Rated service life L70/B50 at 25 °C: 70000 h
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Luminaire luminous efficacy: 118 lm/W
Power factor: 0.9
Wiring type: suitable for through wiring
Number of poles: 3

Characteristics

Energy efficiency class of the permanently installed light sourceOther
HABPolaronIQ WD2D LED2000-840 ET
ManufacturerTrilux
HAN6333740
GTIN4018242309221
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Beam angleFree-radiating/diffuse
Outer diameter403 mm
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-12000lm
Rated ambient temperature according to IEC62722-2-1-20 to 25 °C
Operating deviceElectronic transformer
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth68 mm
Power factor0.9
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy118lm/W
LampsLED replaceable
Light emissionDirect
Light colorWhite
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Max. system performance17 W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage230V
Without dimming functionYes
Number of poles3
Impact resistanceIK05
IP protection)IP40
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic structured
Housing materialAluminum
