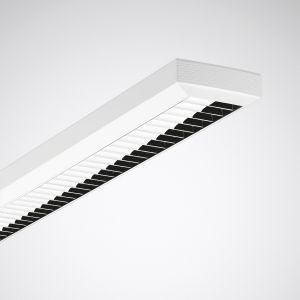

Trilux 6483340 Atirion DL RPV 1200 3300-830 ET LED louvre surface-mounted luminaire, white

Trilux 6483340 Atirion DL RPV 1200 3300-830 ET LED louvre surface-mounted luminaire, white

In stock

SKU: 849449

Price on request

€178.85

€0

Overview

LED surface-mounted luminaire for single or strip lighting applications. For mounting on ceilings and overhangs indoors. With high-gloss anodised parabolic mirror louvre. Louvre fastening and automatic electrical protection measure through sliding contact locks. Louvre can be folded down and removed on both sides without tools. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 1500 cd/m2 for beam angles above 65° all round. Rated luminous flux 3400 lm, rated power 31.00 W, luminous efficacy of the luminaire 109 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80 (tq 25 °C) = 35,000 h, average rated service life L70 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated in white (RAL 9016). Flat profile design, angled at 55° on the room side. Dimensions (L x W): 1246 mm x 197 mm, luminaire height 75 mm. Please order head pieces for individual luminaires or light strip ends separately. Luminaire body with integrated coupling bars for precisely aligned light strips with continuous grids. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, Protection type (DIN EN 60529): IP20, Shock resistance level according to IEC 62262: IK02, Test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 3.5 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

>no

Property	Value
Max. System power:	31 W
Rated luminous flux according to IEC 62722-2-1:	3400 lm
Suitable for number of lamps:	1
Length:	1246 mm
Width:	197 mm
Height/depth:	75 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	steel
Color temperature:	3000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Suitable for wall mounting:	no
Energy efficiency class of the built-in light source:	other
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	without cover
Light distributor:	other
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	electronic transformer
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	yes
Suitable for Pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	high-gloss
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Luminaire luminous efficacy:	110 lm/W
Power factor:	0.95
Wiring type:	suitable for through wiring
Number of poles:	3

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HABAtirion DL RPV 1200 3300-830 ET

Manufacturer

HAN6483340

GTIN4018242333523

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridHigh gloss

Beam angleWide beam 41-80°

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13400lm

Rated ambient temperature according to IEC62722-2-1-20 to 25 °C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1Yes

Width197 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth75 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy110lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1246 mm

Max. system performance31 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialWithout cover

Housing materialSteel
