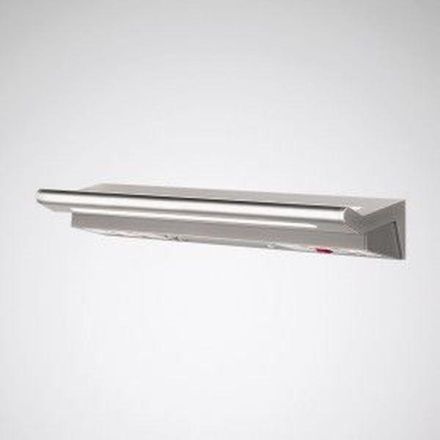

Trilux 6497740 Sanesca W4-L20/R LED4900-830 ET 03 LED wall light

LED wall light with indirect-direct light distribution. With two 230 V protective contact sockets, two potential equalization bolts, Hospicall P3 call system for controlling reading and room light, an RJ45 data socket, two blank covers and a push button switch. The push button switch operates the lower, direct light output for the examination light. For direct wall mounting. The function channel can be folded down by 100° for easy electrical connection, with no visible screws. With direct-indirect light distribution. Glare rating according to UGR classification (EN 12464-1) < 22. With translucent PMMA cover panel. Harmonious lighting effect thanks to evenly illuminated light output. With 3 LED systems. Rated luminous flux 4400 lm, rated power 32.00 W, luminaire luminous efficacy 137 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80 (tq 25 °C) = 70,000 h, average rated service life L85 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of aluminum, upper cover made of sheet steel. Surface coated silver gray (RAL 9006). Dimensions (L x W): 190 mm x 700 mm, luminaire height 96 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 6.3 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Relay K1 for switching the direct reading light. Relay K2 for switching the indirect room light. Push button for switching the examination light. Wiring is done on site. The bed control unit is not included in the scope of delivery. The light can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
