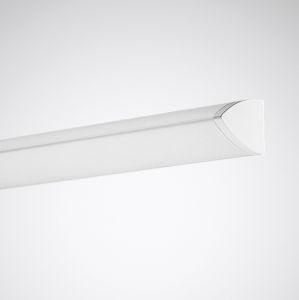

Trilux 6689840 6651 2100 830 ET LED mirror light

In stock

SKU: 850982

Price on request

€284.77

€0

Overview

LED surface-mounted luminaires for ceiling and wall mounting. For horizontal or vertical mounting. Length optimized for tile and mirror dimensions. PMMA diffuser, opal, with internal grooved prism structure, made from one piece. Rated luminous flux 2300 lm, rated power 22.00 W, luminaire luminous efficacy 104 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra> 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of extruded aluminum. Surface coated white (RAL 9016). With cable duct integrated at the rear for cable routing with longitudinally offset wall outlet. With flat head pieces made of white plastic on the front. Dimensions (L x W): 1200 mm x 88 mm, luminaire height 111 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP40, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 2.4 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.

Property	Value
Max. System power:	22 W
Rated luminous flux according to IEC 62722-2-1:	2300 lm
Suitable for number of lamps:	1
Length:	1200 mm
Width:	88 mm
Height/depth:	111 mm
Protection rating (IP):	IP40
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Energy efficiency class of the permanently installed light source:	other
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 25 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Light distributor:	Diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	electronic transformer
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	105 lm/W
Power factor:	0.9
Type of Wiring:	suitable for through wiring
Number of poles:	3

Characteristics

Energy efficiency class of the permanently installed light sourceOther

HAB6651 2100 830 ET

Manufacturer

HAN6689840

GTIN4018242347346

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated luminous flux according to IEC 62722-2-12300lm

Rated ambient temperature according to IEC62722-2-1-20 to 25 °C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Width88 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth111 mm

Power factor0.9

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy105lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1200 mm

Max. system performance22W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK02

IP protection)IP40

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
